1500w 2000w 3000w 6000w 1530 CNC Fiber Laser Cutting Machine
product video
Features
1.High-quality mechanical design components and perfect design result in enhanced cutting precision, stronger processing capability, and a broader range of application scenarios for the machine.
2.Equipped with a specialized CNC system for intelligent fiber laser cutting machines, the system enables automatic edge detection, automatic layout, automatic focusing, and automatic cutting, facilitating convenience and speed while improving processing efficiency.
3.Utilizes high-precision servo motors with stable and durable high-speed performance, ensuring high speed and acceleration of the entire machine.
4.Features an intelligent alarm system and pressure protection device to ensure timely gas supply and improve equipment fault troubleshooting efficiency.
Poruct Details
- Machine Body1. The machine body is made of honeycomb carbon structure.2. The internal stress is eliminated by annealing.3. After secondary vibration aging treatment, it is assured that the machine body will not be deformed for a long time.
- Gantry Beam1.The beam adopts high-strength steel or aluminum alloy with light weight and good dynamic performance.2. The internal stress is eliminated after annealing.3. After secondary vibration aging treatment, the overallstrength and stability is assured.
- Raytools XC3000S Control System1.The XC3000S control system is Raytools' professional CNC for industrial laser production applications.
2.The system, with its overall smooth and easy-to-use human-machine interface, rich functional modules, independent process database, etc., enables it to adapt to various mainstream laser cutting equipment in the industry.
- Delta Servo Driver and Motor1.This high-performance servo motor adopts a one-step locking connector, which is highly resistant to vibration and shock.2.The debugging is more convenient, the operation is more stable, the positioning time is shorter.3.It can better cooperate with the servo driver to complete the position control, speed control and torque control.
- Raycus Laser GeneratorRaycus is the internationally-known brand of laser generator with its own R&D, production and service department, who provides vertical integration capabilities from materials, devices to complete machine.

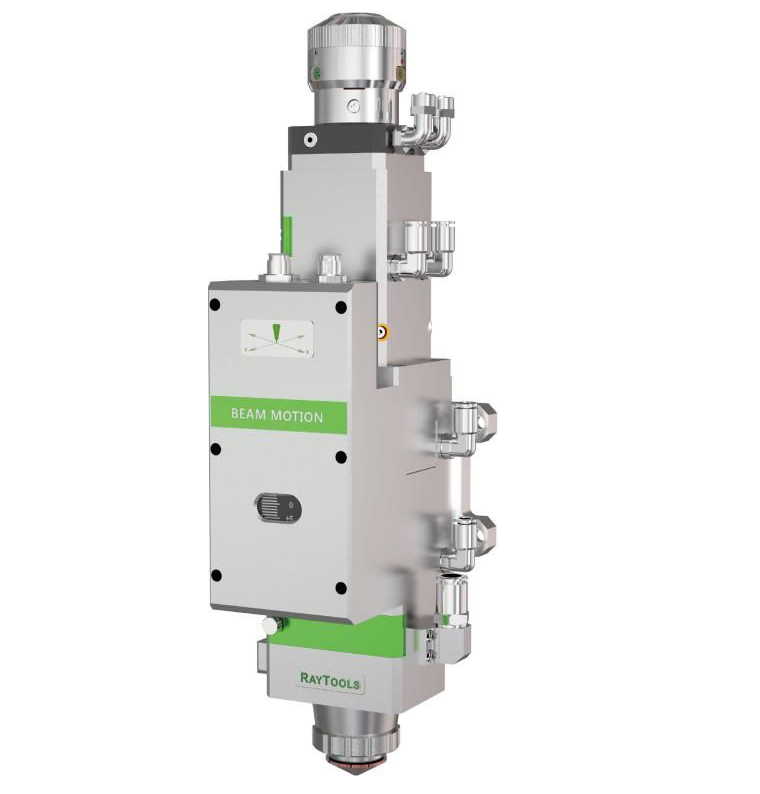

- Raytools Auto Focus BM110 Laser Head1.Raytools BM110 laser head has advantages in medium power and large format metal cutting applications..2 The internal structure of the laser head is completely sealed to avoid dust pollution of the optical part.3.The laser head adopts two-point centering adjustment, and the focusing adopts imported motor and driver, which significantly improves the efficiency in perforation.
- Electronic ComponentsOvervoltage resistance, high performance limitation on fast closing, independent of toggle actuation speed.

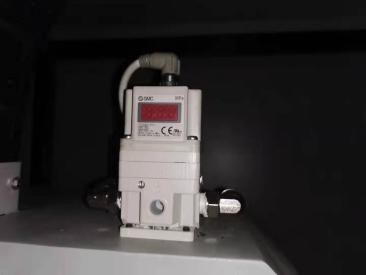

- O2 Proportional ValvesThe electronic proportional valve used to control the oxygen is SMC brand, and its pressure range is 0-1Mpa..
- HANLI Water ChillerThe water chiller is used to cool the laser head and laser source, and an alarm signal will be sent out when the water temperature is too high.

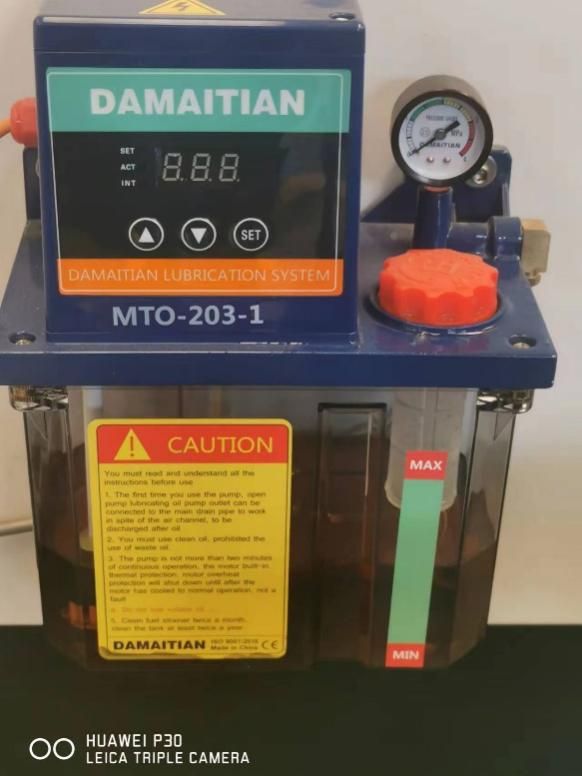

- Automatic LubricationWe can set the frequency of refueling, and control the quantity by adjusting relevant parameters on the computer, which greatly improves the service life of the machine and saves manpower.

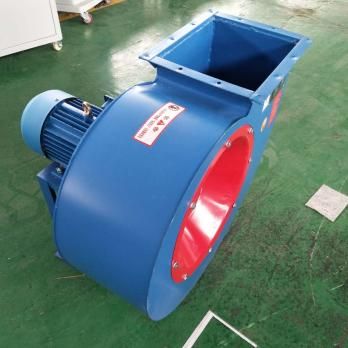

- Exhaust, Anti-dust FanDust is collected through ducts inside the machine

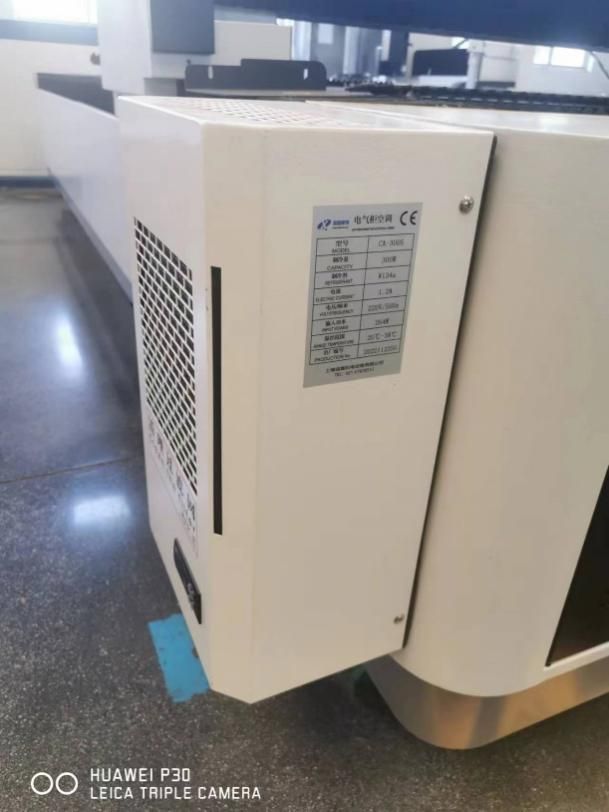

- Air Conditioner OPTIONALThe air conditioner is used to cool the electric control cabinet.
