EP Series 10T 600MM Pure Electric Servo Cnc Press Brake

Main structure and working principle of machine tool

Working Principle

Machine features

Poruct Details

•

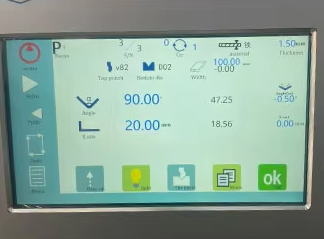

• Control System

  Five-wire touch screen,

  high reliability and service life of more than10 million times,

  the operation process is simple and fast.

  An effcient algorithm can streamline bending Cycles, save time on work step setup,and increase effciency, especially for batch processing

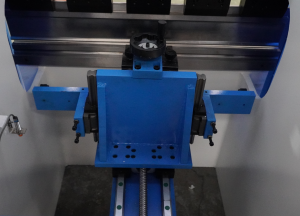

• Back Gauge

  Using servo motor to drive the positioning axis,

  the mechanical structure is compact,

  The running speed is fast,the stability is high,

  and the repeated positioning accuracy is high.
•

•

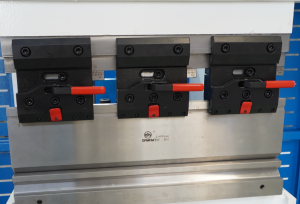

• With fast clamp

  Fast vertical tool change for all Europe type punches

  Safe and fast tool change

  Substantial improvement in time consumption and related costs

  Secure against tool falling down

  Available in manual, pneumatic and hydraulic models

  Easy to mount on your press brake

•

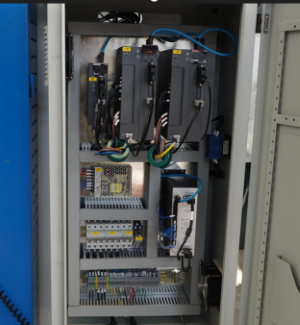

  Electronic control system

  Adopt servo motor,general standard imported circuit board components,

  convenient maintenance,high torque, high precision,

  fast response, low noise and so on.

•

•

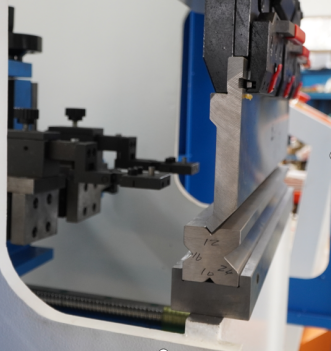

• With 1set standard up punch and die

  The standard top punch and multi-v bottom die are specially designed for bending sheet metals. More press brake tooling can be selected as per your practical use.

• Machine frame tempering process

  Tempering is the heating treatment of hardened racks to change their organisation.

  By tempering, the hardness of the rack can be decreased but the toughness can be increased.

  Tempering treatment can effectively reduce the internal stress of the rack

  and avoid problems such as cracks or deformation of the rack during use.

•

•

• Foot Switch with Emergency Button

  The foot switch is flexible and durable.

  Emergency button makes operation safe and secure.

•

• Light curtain  (optional)

  Moves up and down with the slider to provide full protection for the operator in extremely close proximity

  Use laser light source, can detect objects as small as 5mm and allow vibration deviation

  Redundant design with dual outputs for safety and reliability

  Allows quick mould closure for maximum productivity.

  Compact size, with its own scale, for quick and easy adjustments

• Optical Safety System(optional)

  CLASS 1 Dual Block laser

  Fast response time

  Safety speed automatically monitored

  Stopping distance automatically monitored

  Status LEDs-Power/Front/middle/rear Sensors
•
