Electric Press Brake
EP Series 20T 1300MM Pure Electric Servo Cnc Press Brake
Features
Eco-friendly: Clean, pollution-free, and energy-efficient, eliminating the need for hydraulic oil.
High Efficiency & Speed: Servo motors ensure fast speeds, precise bending, and reduced processing time compared to electro-hydraulic alternatives.
Low Maintenance & Stability: No need for regular oil changes, with servo motors ensuring stable control and unaffected bending accuracy.
Energy Savings: Consumes less electricity, saving an estimated 10,000 kWh per year, or 30%-50% reduction.
User-friendly & Efficient: Designed for ease of use and preferred for bending small and medium-sized parts
Cost-effective & lmproved Efficiency: Offers over 30% energy savings, lower operating costs, and more than 40%increased efficiency compared to electro-hydraulic press brakes, resulting in a more stable and reliable option.
Machine Frame Tempering Process
Poruct Details

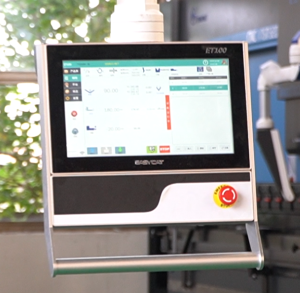

Control System
· Taiwan 18 inch high resolution color TFT touch screen
· Support CAD import
· Support scanning code programming, graphic programming, table programming
· Languages available: Chinese,English,Russian,Portuguese,etc
· Automatic parameter backup and data import and export are supported
· Remote upgrade debug: reduces maintenance costs
· Deflection compensation hydraulic/motor two options are available
·Personalized functions: icon text annotation, bending quick operation,processing step table display
·Friendly user interface: menu interface,2D drawing bending simulation,U1 interface multi-style
·Energy saving and environmental protection: adapt to the servo pump, adjust the oil supply according to the action,Reduced overflows,40% power savings
Back Gauge
Using servo motor to drive the positioning axis,
the mechanical structure is compact,
The running speed is fast,the stability is high,
and the repeated positioning accuracy is high.

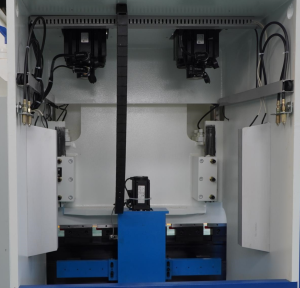

Servo motor
No need to use hydraulic oil,
saving about 80% energy compared with traditional equipment and higher accuracy
Electronic control system
Adopt servo motor,general standard imported circuit board components,
convenient maintenance,high torque, high precision,
fast response, low noise and so on.
With fast clamp
Fast vertical tool change for all Europe type punches
Safe and fast tool change
Substantial improvement in time consumption and related costs
Secure against tool falling down
Available in manual, pneumatic and hydraulic models
Easy to mount on your press brake
With 1set standard up punch and die
The standard top punch and multi-v bottom die are specially designed for bending sheet metals.
More press brake tooling can be selected as per your practical use.
Foot Switch with Emergency Button
The foot switch is flexible and durable.
Emergency button makes operation safe and secure.
Machine frame tempering process
Tempering is the heating treatment of hardened racks to change their organisation.
By tempering, the hardness of the rack can be decreased but the toughness can be increased.
Tempering treatment can effectively reduce the internal stress of the rack
and avoid problems such as cracks or deformation of the rack during use.
Light curtain (optional)
Moves up and down with the slider to provide full protection for the operator in extremely close proximity
Use laser light source, can detect objects as small as 5mm and allow vibration deviation
Redundant design with dual outputs for safety and reliability
Allows quick mould closure for maximum productivity.
Compact size, with its own scale, for quick and easy adjustments
- Optical Safety System(optional)CLASS 1 Dual Block laserFast response timeSafety speed automatically monitoredStopping distance automatically monitoredStatus LEDs-Power/Front/middle/rear Sensors
