The Science of V-Opening Selection: How It Redefines Bending Tonnage and Radius

Meta Description:Selecting the right V-die width is a balance of physics. Learn how V-opening influences bending force, internal radius, and minimum flange length to optimize your Press Brake performance.

Introduction: Why the V-Opening is the "Anchor" of Bending

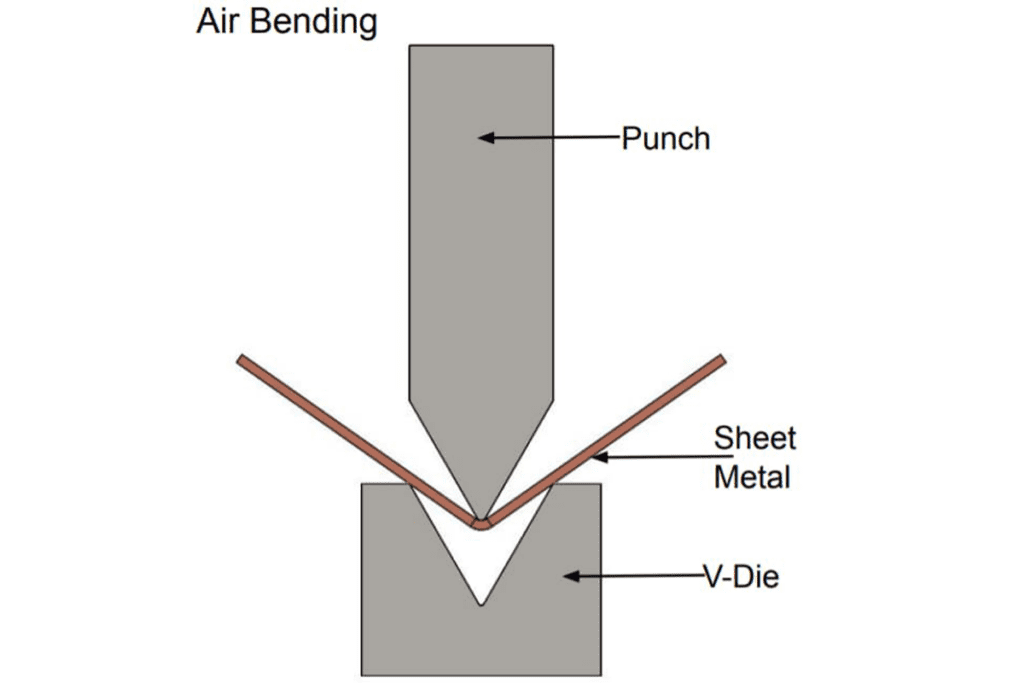

In air bending, the V-die width is the most critical variable. It is not just a support for the metal; it defines the geometry of the bend. Choosing the wrong V-opening leads to machine overload, fractured material, or parts that simply don't fit the assembly.

The Rule of Thumb and Its Exceptions

The industry standard for mild steel is the 8T Rule: V = 8 × T (where T is the material thickness).

However, professional fabricators adjust this ratio based on the material's properties:

Thin Materials (<3mm): Often use V = 6 × T to achieve tighter radii.

Thick Materials (>6mm): Often move to V = 10 × T or V = 12 × T to reduce the extreme tonnage required and prevent machine strain.

2. The Physics of Tonnage: A Mathematical Relationship

The relationship between V-opening and bending force (P) is inversely proportional.

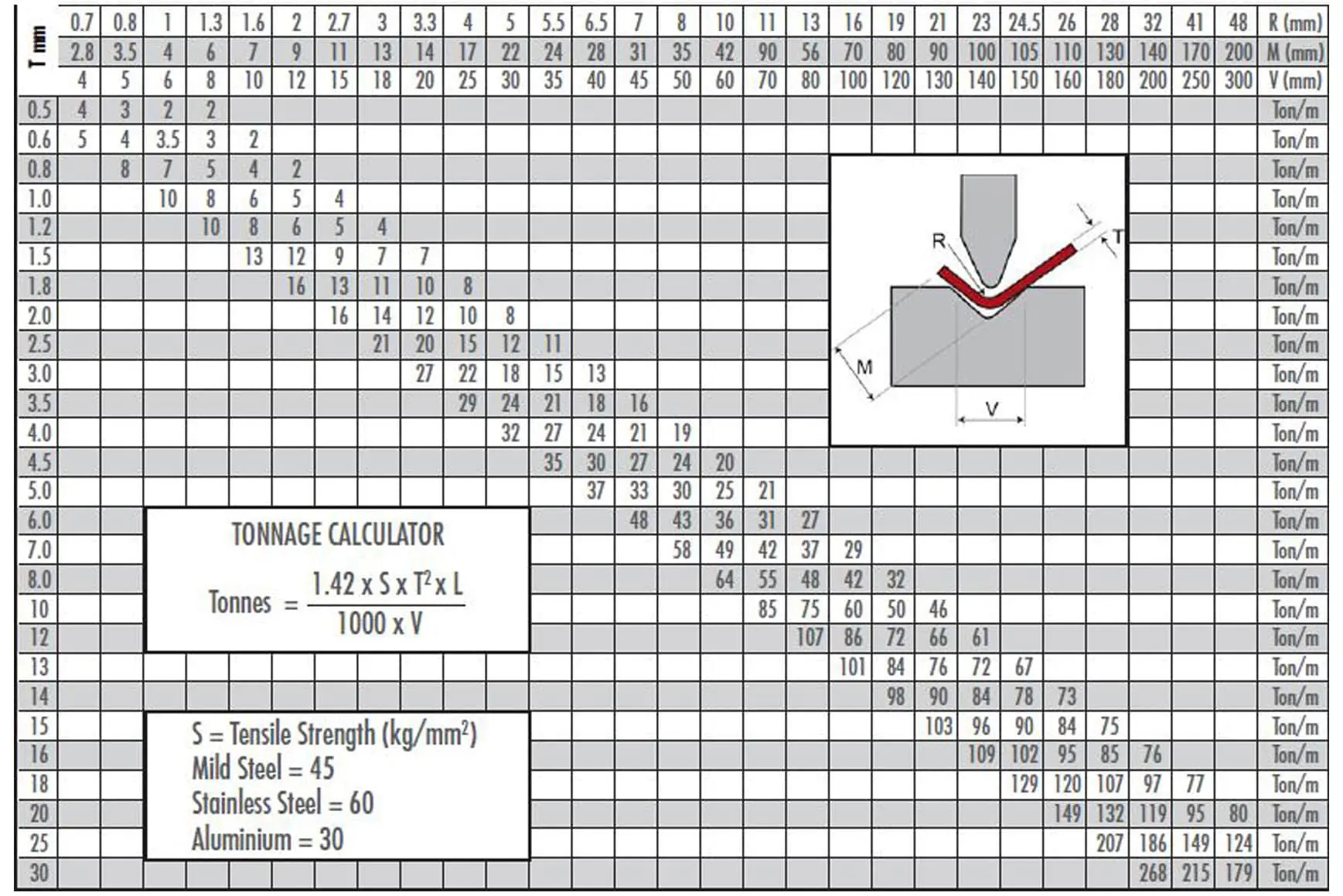

The simplified formula for bending tonnage is:

P = (650 × S² × L) / V

(Where S = Material thickness, L = Length, V = V-opening width)

Technical Insight: If you double the V-opening width, you cut the required bending force by half. This is the "secret" to bending thick plates on a machine with limited tonnage—by widening the V, you ease the load on the hydraulic system and the tooling.

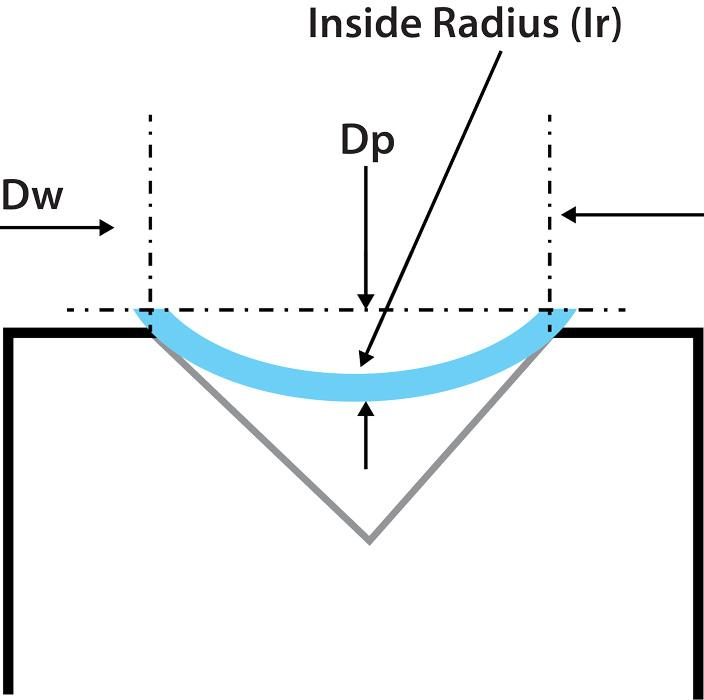

Impact on Internal Radius (Ri)

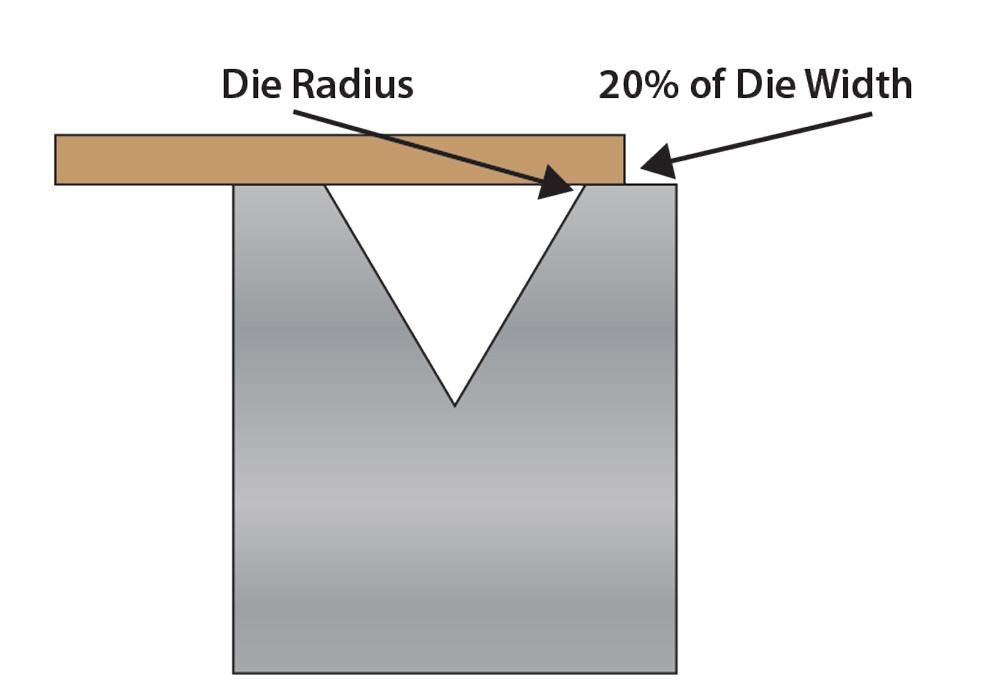

In air bending, the internal radius is not determined by the punch tip, but by the V-opening. This is known as the "20% Rule":

For mild steel, the internal radius is approximately Ri ≈ V / 6 (roughly 15-17%).

For stainless steel, Ri ≈ V / 5 (roughly 20%).

If you use a V-opening that is too wide, your internal radius will increase, which may cause the part to fail inspection if the design requires a sharp, tight bend.

4. The Trade-off: Minimum Flange Length (b)

The most common mistake is choosing a wide V to save tonnage, only to find the part's flange is too short to bridge the opening.

A part must be long enough to rest securely on both shoulders of the V-die before the bend begins.

Calculation: The minimum flange length is typically b ≈ 0.7 × V.

If your design has a 10mm flange, you cannot use a V-opening larger than 14mm, regardless of the material thickness.

5. Surface Integrity and Scratches

A narrower V-die increases the friction and "draw" of the material over the die shoulders, leading to visible scratches.

Pro Tip: For high-end stainless steel or aluminum architectural parts, engineers often use Larger V-openings combined with Nylon/Urethane die inserts or specialized "Rolla-V" tooling to eliminate marking.
