QC11Y Series 10x3200mm E21S Hydraulic Shearing Machine

1. The frame and tool rest are constructed from steel structural components, with the upper tool rest being tempered to eliminate internal stress, resulting in enhanced rigidity and improved organizational stability.
2. Under the action of the oil cylinder, the tool holder moves along the guide rail to achieve shearing motion.
3. The rear stopper is driven by a ball screw, while motor-driven adjustment enables precise positioning and ensures fast and smooth operation of the stopper distance.
4. The material pressing mechanism consists of a set of material pressing oil cylinders that overcome spring tension through pressure oil during operation. After completion of shearing, reset is achieved using spring tension.
5. To facilitate cutting wider sheet materials, a front supporting frame is provided with one featuring a scale and side positioning stop.
6. The hydraulic system incorporates overload overflow safety protection, clear display of oil level height, enabling continuous operation under rated load for 16 hours without leakage or interruption for stable processing with high precision.

product details

product video

Features

QC11Y Hydraulic Guillotine Shearing Machine with E21S adopts all-steel welded structure and comprehensive treatment (vibration aging, heat treatment) to eliminate internal stress, with good rigidity and stability. X axis( Back gauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs.

Advanced integrated hydraulic system with high reliability. Three points of support rolling guide are used to eliminate the support gap and improve the shearing quality. Blade gap adjustment by hand wheel or electric, quick, accurate and convenient. Rectangular blade with all four edges, long service life. Upper blade holder with inward tilting structure, easy to drop the material and improve the accuracy of the work piece. Segmented shearing function with light alignment.

Machine Frame Tempering Process

Tempering Is The Heating Treatment Of Hardened Racks To Change Their Organisation.

By Tempering, The Hardness Of The Rack Can Be Decreased But The Toughness Can Be Increased.

Tempering Treatment Can Effectively Reduce The Internal Stress Of The Rack

And Avoid Problems Such As Cracks Or Deformation Of The Rack During Use.

Poruct Details

Estun E21S

.Back gauge control .

. Control for general AC motors, frequency inverter.

. Intelligent positioning.

. Double programmable digital output.

. Stock counter.

. Program memory of up to 40 programs, up to 25 steps per program.

. One side positioning.

. Retract function.

. One key backup/restore of parameters.

. mm/inch, Chinese/English .

Siemens main motor

Using Siemens moter guarantees the machine service life,

and reduce the noise when working.

Bosch Rexroth valve set

Hydraulic drive smooth, reliable, integrated hydraulic system design

to reduce problems brought about by leakage of hydraulic oil.

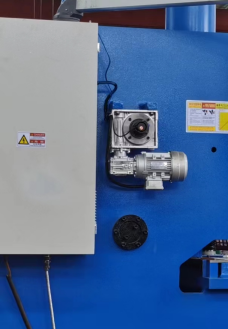

Rear baffle motor

High-quality motor with gear pump, low noise,

pressure fast, shear plate force, long life.

Shear Blades

The shearing machine is equipped with the highest quality shearing blades,

made of alloy, heat resistant high alloy steel, D2, H13

and other materials, suitable for shearing various materials.

Electric Cutting Gap Device:

Which provide can provide good cutting performance

for cutting different thickness

With USA SUNNY PUMP:

Improves the lifespan of the machine

and working in low noise environment

Electric Cabinets

Schneider Electric Cabinets - High Reliability and Suitability

Durable electrics ensure the stable operation of the machine.

Reasonable line connection and arrangement greatly reduces the failure rate.

And components and operators are protected.

Electric Cabinets

Schneider Electric Cabinets - High Reliability and Suitability

Durable electrics ensure the stable operation of the machine.

Reasonable line connection and arrangement greatly reduces the failure rate.

And components and operators are protected.
