QC12Y Series 4x2500mm E21S Hydraulic Shearing Machine

1.The vibration of the machine and the tool holder eliminates the stress, the whole machine is welded, and is not easy to wear.
2.Integrated hydraulic system, good reliability;
3.Adopt three-point bearing rolling guide rail to eliminate bearing clearance and ensure shearing quality.
4.The upper and lower blades use four-sided blades to increase the use time.
5.The shearing angle can be adjusted electrically to reduce the deformation of the sheared plate.
6.It has the function of segmented fixed length shear.
7.Electric rear stopper, digital display, accurate and reliable;

product details

product video

Features

Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

Hydraulic sheet metal shears machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

Back gauge is adjusted by E21S controller.

Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.

The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.

Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.

Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting promptly.

Technical parameter

Models	Shear plate thickness mm	Shear plate width mm	Back gauge range mm	Shear angle	Throat orifice depth mm	Main motor work KW	Shape size mm (LxWxH)
4×2500	4	2500	600	0.5-1.5	100	5.5	3000×2000×1850
6×2500	6	2500	600	0.5-1.5	125	7.5	3030×2075×1920
6×3200	6	3200	600	0.5-1.5	125	7.5	3730×2075×1970
6×4000	6	4000	600	0.5-1.5	125	7.5	4530×2075×2080
6×5000	6	5000	800	0.5-1.5	125	7.5	5530×2075×2210
6×6000	6	6000	800	0.5-1.5	125	11	6530×2075×2520
6×7000	7	7000	800	0.5-1.5	125	11	7530×2075×2830
8×2500	8	2500	600	0.5-1.5	125	11	3040×2075×1920
8×3200	8	3200	600	0.5-1.5	125	11	3740×2075×1920
12×2500	12	2500	800	0.5-2	125	15	3110×2575×2210
12×3200	12	3200	800	0.5-2	125	15	3810×2575×2420
12x4000	12	4000	800	0.5-2	125	15	4610×2575×2530
16×2500	16	2500	800	0.5-2.5	125	22	3130×2655×2200
16×3200	16	3200	800	0.5-2.5	125	22	3830×2655×2200
16×4000	16	4000	800	0.5-2.5	125	22	4630×2655×2570
20×2500	20	2500	800	0.5-2.5	125	30	3160×2855×2300
20×4000	20	4000	800	0.5-2.5	125	30	4660×2855×2720
25×2500	25	2500	800	0.5-3.5	120	37	3330×2000×2650
25×3200	25	3200	800	0.5-3.5	120	37	3970×2100×2865
25×4000	25	4000	1000	0.5-3.5	120	37	4780×2500x3150
32×2500	32	2500	1000	0.5-3.5	120	45	4100×2300×3200
32×3200	32	3200	1000	0.5-3.5	120	55	1900×2650×3450
40×2500	40	2500	1000	0.5-3.5	120	75	4100×2550×3500
40×3200	40	3200	1000	0.5-3.5	120	75	4900×2900×37

Machine Frame Tempering Process

Tempering Is The Heating Treatment Of Hardened Racks To Change Their Organisation.

By Tempering, The Hardness Of The Rack Can Be Decreased But The Toughness Can Be Increased.

Tempering Treatment Can Effectively Reduce The Internal Stress Of The Rack

And Avoid Problems Such As Cracks Or Deformation Of The Rack During Use.

Poruct Details

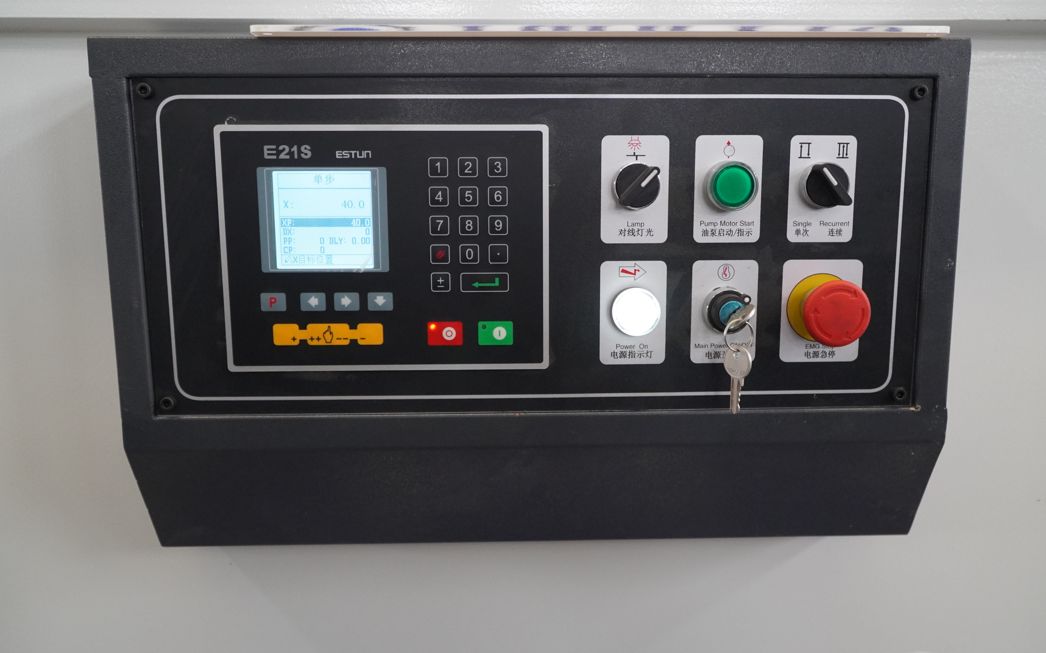

Estun E21S

.Back gauge control .

. Control for general AC motors, frequency inverter.

. Intelligent positioning.

. Double programmable digital output.

. Stock counter.

. Program memory of up to 40 programs, up to 25 steps per program.

. One side positioning.

. Retract function.

. One key backup/restore of parameters.

. mm/inch, Chinese/English .

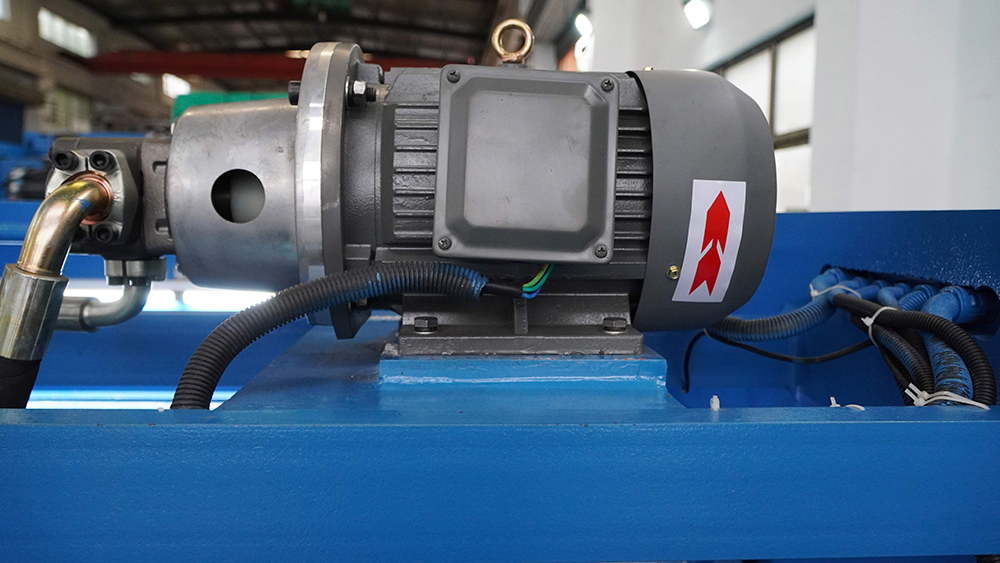

Siemens main motor

Using Siemens moter guarantees the machine service life,

and reduce the noise when working.

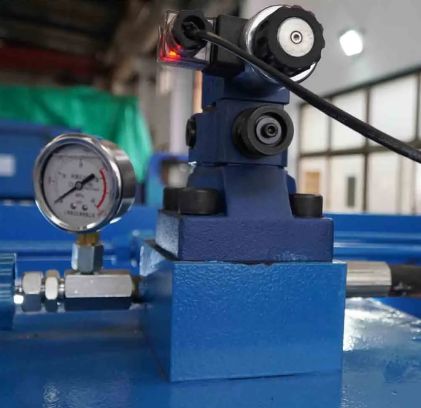

Bosch Rexroth valve set

Hydraulic drive smooth, reliable, integrated hydraulic system design

to reduce problems brought about by leakage of hydraulic oil.

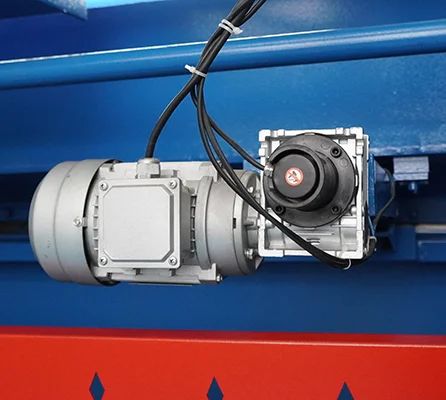

Rear baffle motor

High-quality motor with gear pump, low noise,

pressure fast, shear plate force, long life.

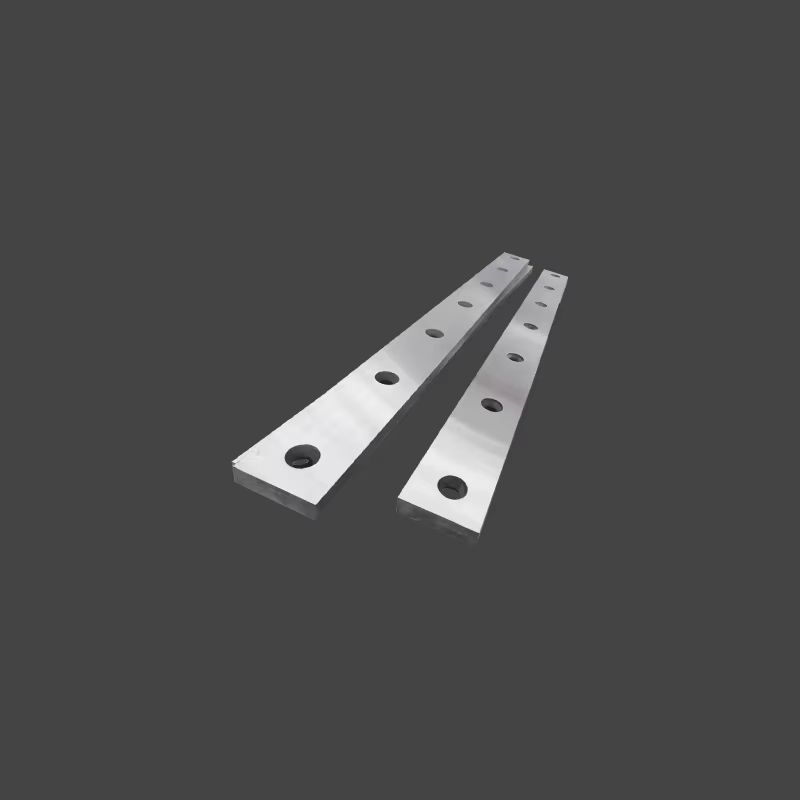

Shear Blades

The shearing machine is equipped with the highest quality shearing blades,

made of alloy, heat resistant high alloy steel, D2, H13

and other materials, suitable for shearing various materials.

Fast blade gap adjustment device

Simple and efficient manual adjustment style,

to reach blade gap step less adjustment.

With USA SUNNY PUMP:

Improves the lifespan of the machine

and working in low noise environment

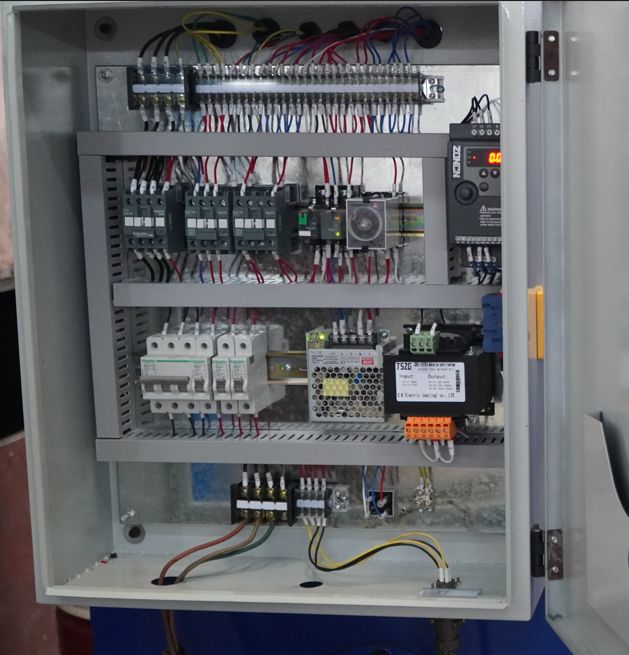

Electric Cabinets

Schneider Electric Cabinets - High Reliability and Suitability

Durable electrics ensure the stable operation of the machine.

Reasonable line connection and arrangement greatly reduces the failure rate.

And components and operators are protected.

KACON Foot Switch

South Korea brand food switch is movable

And can stop the machine anytime by the emergency button.

Optical Safety System(optional)

CLASS 1 Dual Block laser

Fast response time

Safety speed automatically monitored

Stopping distance automatically monitored
