WC67K-125T 4000mm CNC Hydraulic Press Brake
product video
Features
Electronic-hydraulic proportional servos are synchronized and capable of the control of random point within the stroke, with an accuracy of repetition of ±0.01 and parallelism of 0.02.
The lower worktable adopts deflection compensation(refer to the following figure)and the upper die is equipped with deflection compensation mechanism; the lower worktable is provided
with imported manually and electrically-driven protruding device and the worktable with an operating pressure of 250T or above is provided with lower die compensation device.
The compute system of Holland Delem make (or Switzerland Cybelec )is provided and the grating ruler ,valve group assembly of the hydraulic system and servo motor are all originally
imported and have good performances and extraordinarily strong anti-deflection ability.
The stroke of sliding blocks (Y1,Y2) and backgauges(X,R,Z)are computer-controlled .The back gauges adopt ball screw and rolling guideway, ensuring a high accuracy of repetition.
The best parameter ratio and the best core configuration ensure stable performance and more convenient operation
CNC machines with seven axles or above, manipulator,plate flexible processing center ,etc. can be specially manufactured.

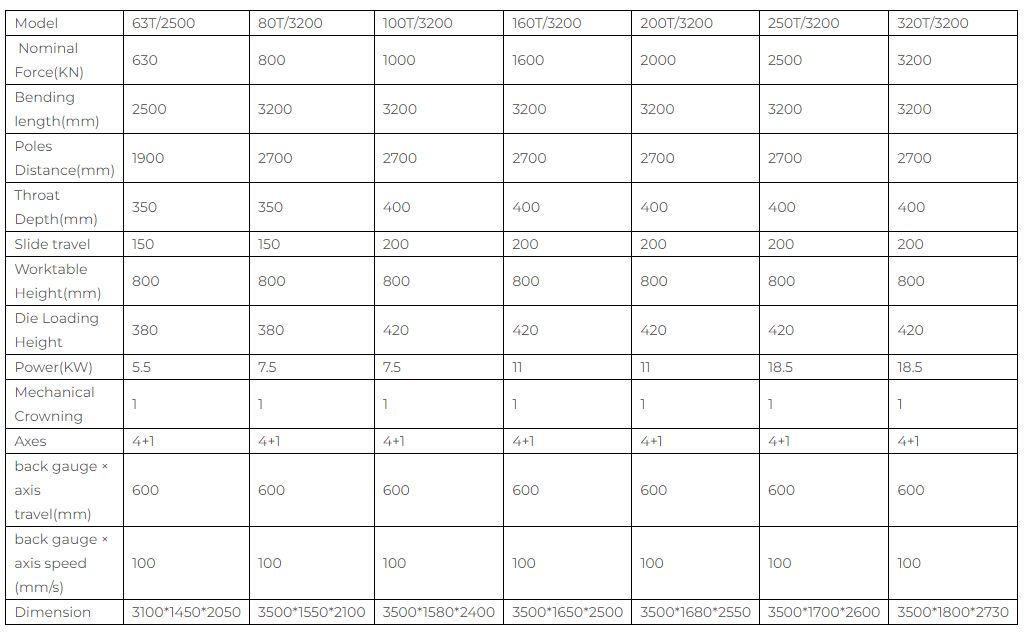

Technical parameter
Machine Frame Tempering Process
Tempering Is The Heating Treatment Of Hardened Racks To Change Their Organisation.
By Tempering, The Hardness Of The Rack Can Be Decreased But The Toughness Can Be Increased.
Tempering Treatment Can Effectively Reduce The Internal Stress Of The Rack
And Avoid Problems Such As Cracks Or Deformation Of The Rack During Use.
Poruct Details
- DELEM CNC Control SystemDELEM DA53T Touch CNC System10.1" high resolution colour TFT“Hot-key" touch navigationUp to 4 Axis (Y1.Y2 + 2 aux. Axis）Tool/material/product libraryAdvanced Y-axis control algorithms for closed-loop as well as open-loop VCNC Crowning controlUSB memory stick interfacingProfle-53TLoffline software

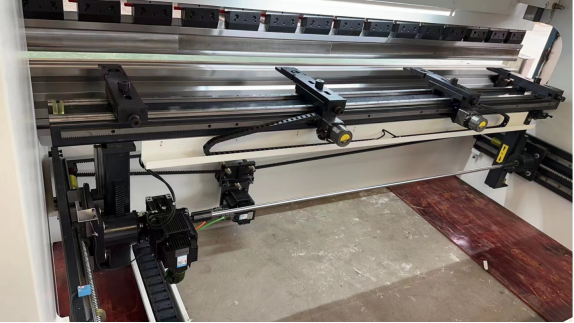

- BGA-2 BackGaugePress Brake 4-Axis CNC BackGauge withX,R-AxisBall screws and linear guide on X, R-axisAxis Xspeed 500 mm/s.Manual Z1,Z2-axis with HiWIN linear guideMechanical accuracy+0.03 mm.Fingers with double stop and micrometric adjustment.Footswitch control Z1,Z2 for rear stopper

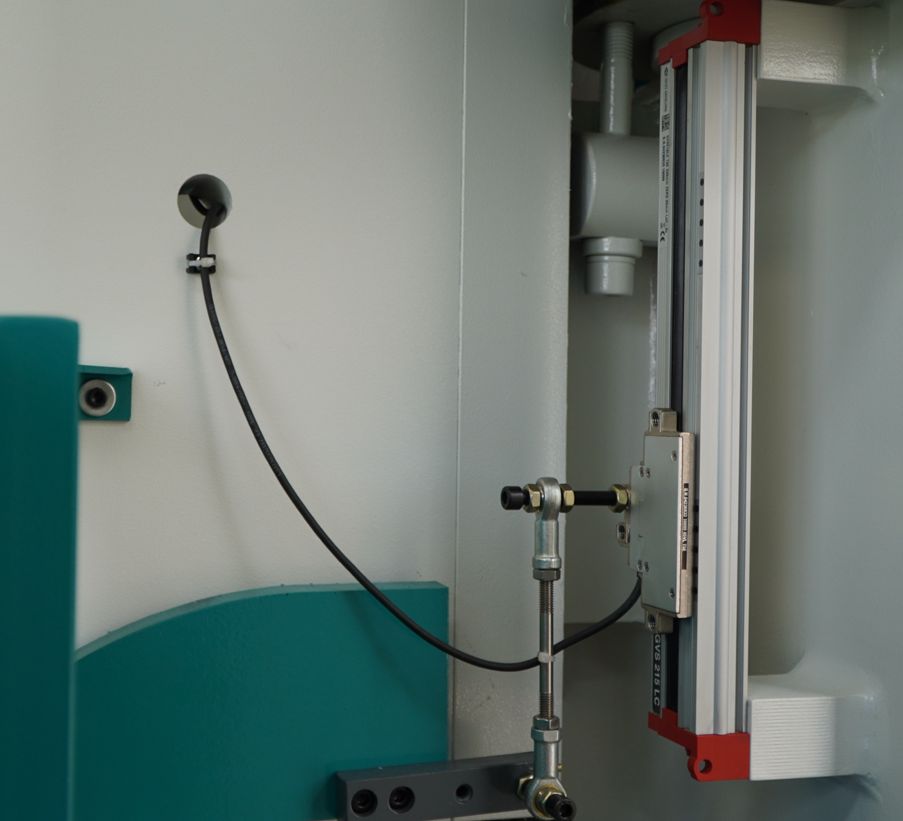

- Grating Ruler
Grating ruler’s Advantage:Different sizes to suit different installation spacesNon-contact linear scales, ABSOLUTES or incremental.Digital communication with leading CNCs such as FAGOR, FANUC, Mitsubishi, Siemens, Panasonic, etc.Linear scales, high accuracy, high resolutionAngle encoder with 2 arc second accuracy and 0.01 arc second resolution.Signal lines with tape scale readheads can be mounted from both ends.
- With Quickly Release ClampFast vertical tool change for all Europe type punchesSafe and fast tool changeSubstantial improvement in time consumption and related costsSecure against tool falling downAvailable in manual, pneumatic and hydraulic modelsEasy to mount on your press brake

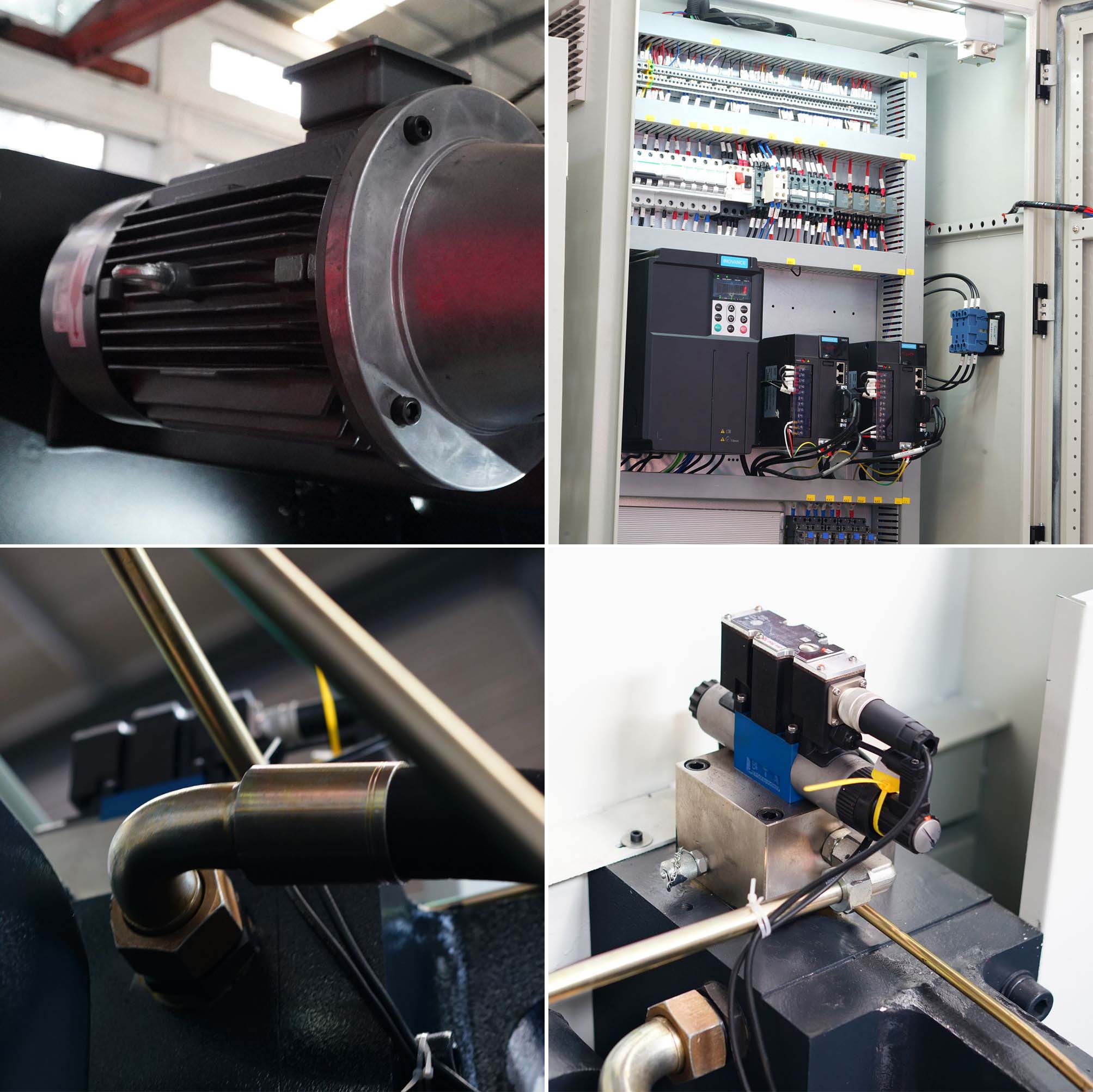

- Advanced machine configurationsSiemens industrial motors with outstanding performance
Schneider Electric Cabinets - High Reliability and SuitabilityGermany EMB oil pipe fitting--High temperature and high pressure resistantGerman BOSCH valve group - fast response, high precisionUSA SUNNY PUMP provide low working noise

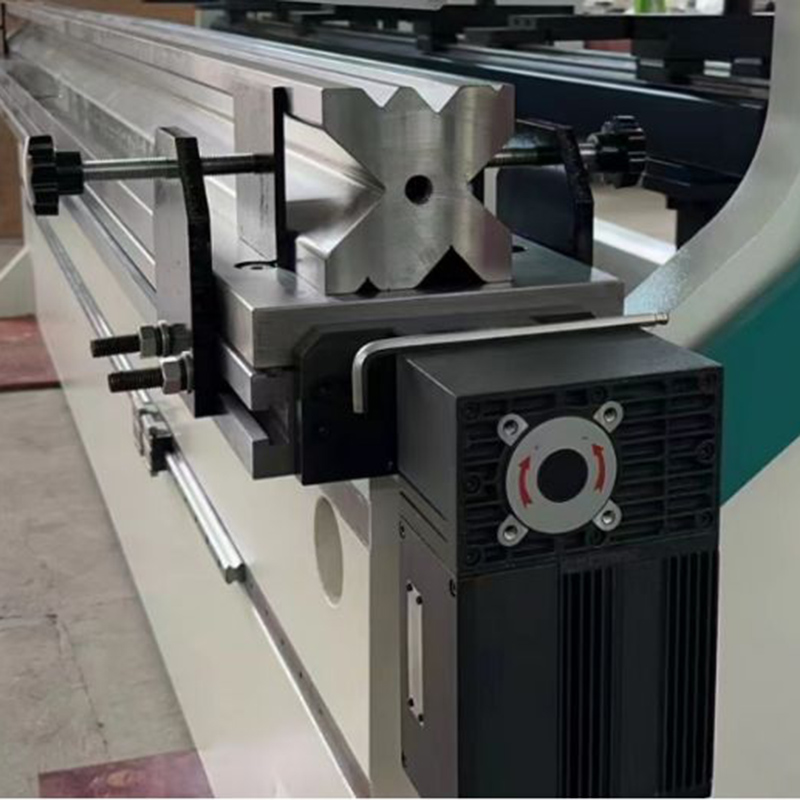

- Motorized Crowning:Very precise bending anglesEurope type dies with 60 mm and 90 mmBase can be clamped as well as single dies with 13 mm tangMotorized crowning with a handlePrecise positioning and alignment of the crowning tableEasy and fast usage
- Main servo motor (optional)Servo motor’s Advantage:High dynamic for a higher productivity of the machine.Compliance with EU Directives.Lower energy for a green Machine.Lowered sound pressure level at 50 dB.The seryo-motor with closed loop speed control.Energyeffciencyofup to 35 % compared to conventional systems.Operating cost is min due to lowenergy consumption.Thus, it givesadvantages to the user with high effciency & low operation cost.
- Light curtain (optional)Moves up and down with the slider to provide full protection for the operator in extremely close proximity
Use laser light source, can detect objects as small as 5mm and allow vibration deviation
Redundant design with dual outputs for safety and reliability
Allows quick mould closure for maximum productivity.
Compact size, with its own scale, for quick and easy adjustments
- Optical Safety System-AdvancedCLASS 1 Dual Block laserFast response timeSafety speed automatically monitoredStopping distance automatically monitoredStatus LEDs-Power/Front/middle/rear Sensors
