WC67K-160T 3200MM ESTUN E300P Hydraulic Press Brake Machine

product video

Features

Machine Frame Tempering Process

Poruct Details

•

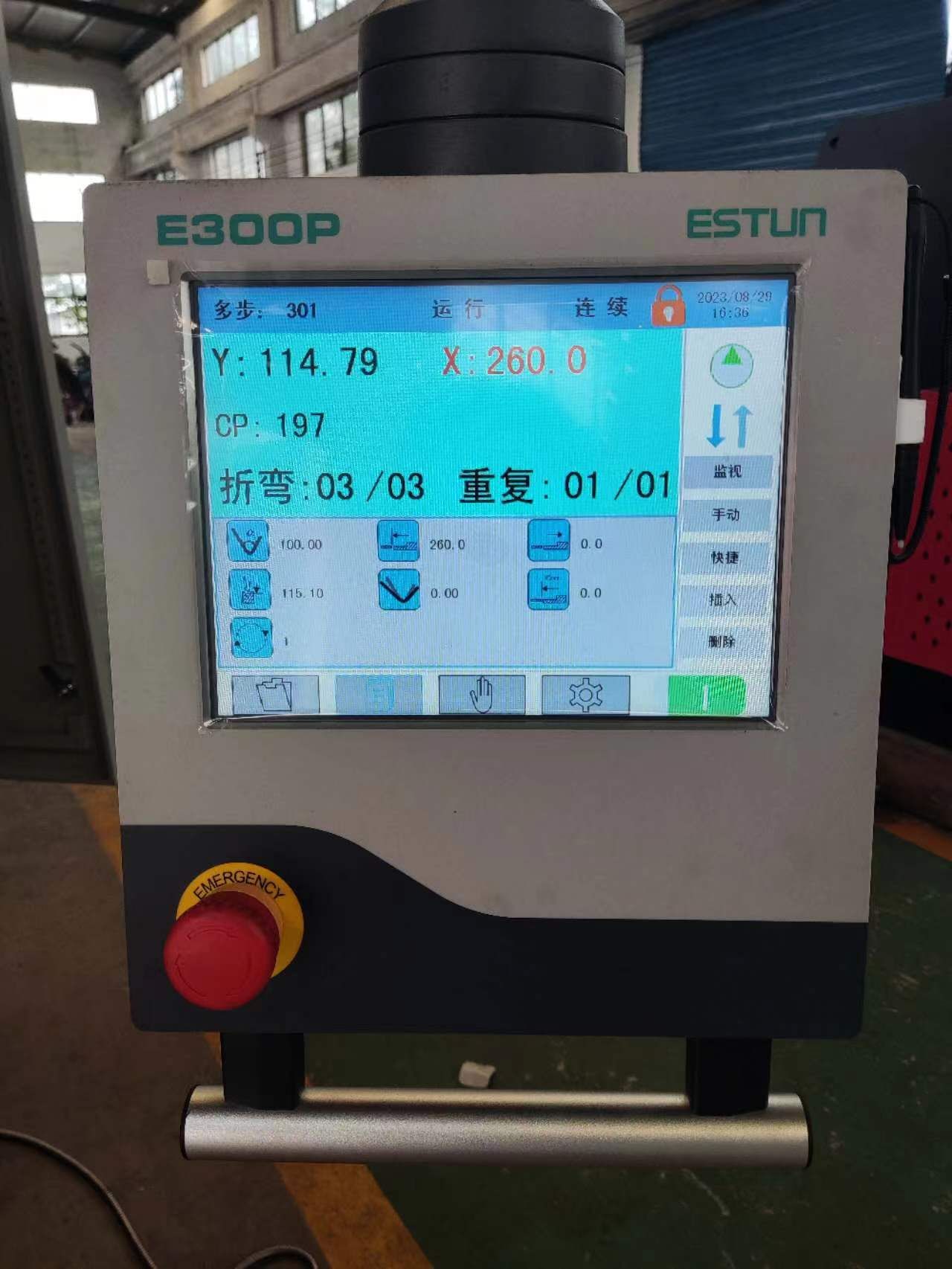

• ESTUN E300P NC Control System

  X, Y and R servo axes controlled by CAN bus

  Crowing supports both mechanical and hydraulic modes

  Built in machine work logic, multiple work modes

  Tools library and material table

  I / O ports are freely configurable

  USB interface for backup and upgrade

  parameter backup / restore function

  Chinese / English Optional

  Metric / imperial optional

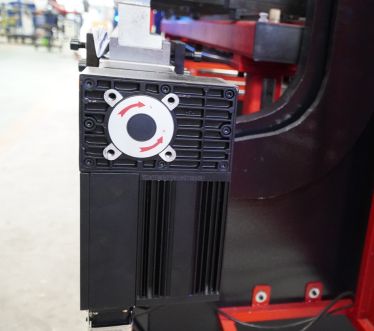

• BGA-2 BackGauge

  Taiwan ball bearing lead screw and linear guide rail

  Synchronous wheel synchronous belt
•

•
• With 1set standard up punch and die

  The standard top punch and multi-v bottom die

   are specially designed for bending sheet metals.

  More press brake tooling can be selected as per your practical use.

• With fast clamp

  Fast vertical tool change for all Europe type punches

  Safe and fast tool change

  Substantial improvement in time consumption and related costs

  Secure against tool falling down

  Available in manual, pneumatic and hydraulic models

  Easy to mount on your press brake
•

•
• Foot Switch with Emergency Button

  The foot switch is flexible and durable.

  Emergency button makes operation safe and secure.

• With USA SUNNY PUMP:

  Improves the lifespan of the machine

  and working in low noise environment
•

•
• Advanced machine configurations

  Siemens industrial motors with outstanding performance

  Schneider Electric Cabinets - High Reliability and Suitability

  Germany EMB oil pipe fitting--High temperature and high pressure resistant

  German BOSCH valve group - fast response, high precision

  USA SUNNY PUMP provide low working noise

• Motorized Crowning(optional)

  Very precise bending angles

  Europe type dies with 60 mm and 90 mm

  Base can be clamped as well as single dies with 13 mm tang

  Motorized crowning with a handle

  Precise positioning and alignment of the crowning table

  Easy and fast usage
•

•
• Main servo motor (optional)

  Servo motor’s Advantage:

  High dynamic for a higher productivity of the machine.

  Compliance with EU Directives.

  Lower energy for a green Machine.

  Lowered sound pressure level at 50 dB.

  The seryo-motor with closed loop speed control.

  Energyeffciencyofup to 35 % compared to conventional systems.

  Operating cost is min due to lowenergy consumption.

  Thus, it givesadvantages to the user with high effciency & low operation cost.

• Light curtain  (optional)

  Moves up and down with the slider to provide full protection for the operator in extremely close proximity


  Use laser light source, can detect objects as small as 5mm and allow vibration deviation


  Redundant design with dual outputs for safety and reliability


  Allows quick mould closure for maximum productivity.


  Compact size, with its own scale, for quick and easy adjustments

•

•
• Optical Safety System(optional)

  CLASS 1 Dual Block laser

  Fast response time

  Safety speed automatically monitored

  Stopping distance automatically monitored

  Status LEDs-Power/Front/middle/rear SensorsPress brake:

Press brake

• 1.CNC press brake 3-4 aixs

  2.CNC press brake 6 aixs

  3.CNC press brake 6-8 aixs
• 4.NC hydraulic press brake

  5.Electrical press brake machine
