WC67K-63T 2500MM TP10S Controller Hydraulic Press Brake Machine

product video

Features

Machine Frame Tempering Process

Poruct Details

•

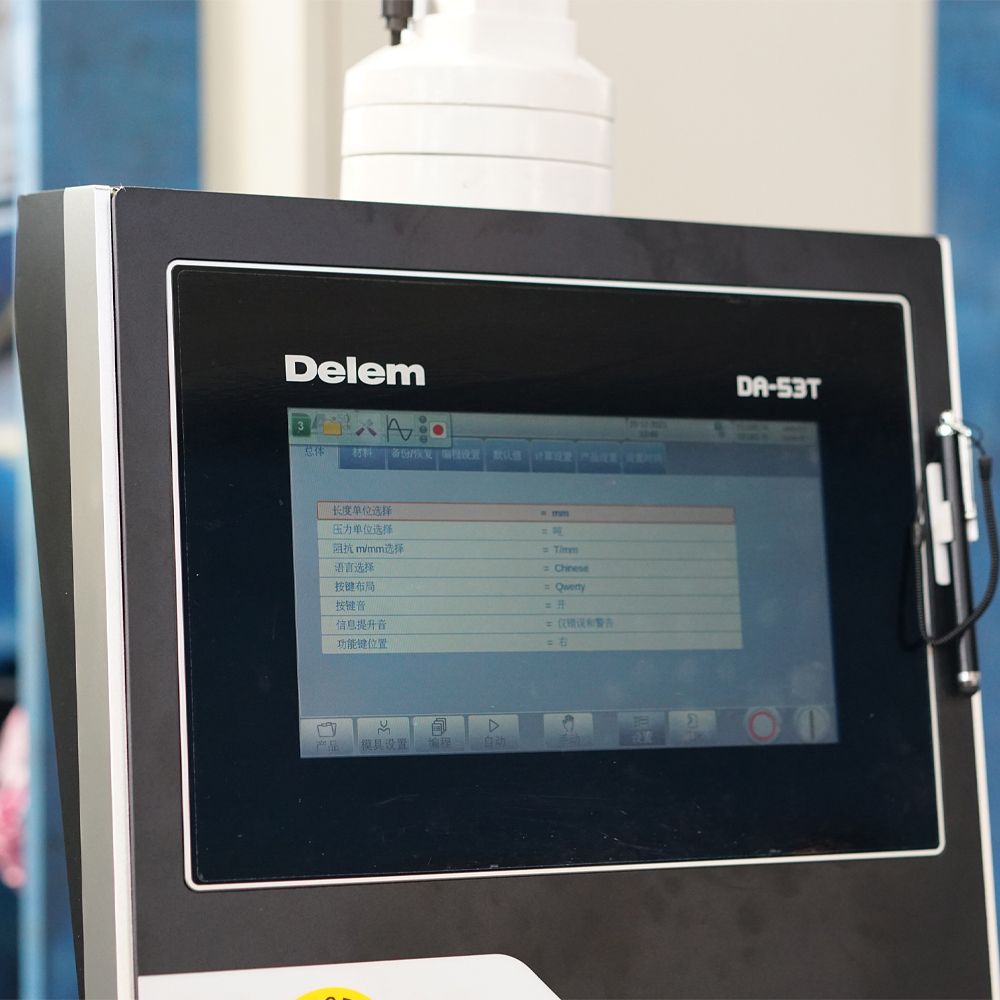

• TP10S NC Control System

  1.10 inch TFT 256K color touch screen

  2.The standard Y,X1 axis servo motor

  3.Support angle programming,

  the system automatically calculate the depth of plate bending

  4.Slider(Y axis)position control

  5.Position control of rear stopper (X1 axis)

  6.220 programs, each program 24 steps

  7.Soft limit function

  8.Power off memory

  9.Matching support X2,R1,R2.Z1,Z210.

  Matching support for the degree of compensation

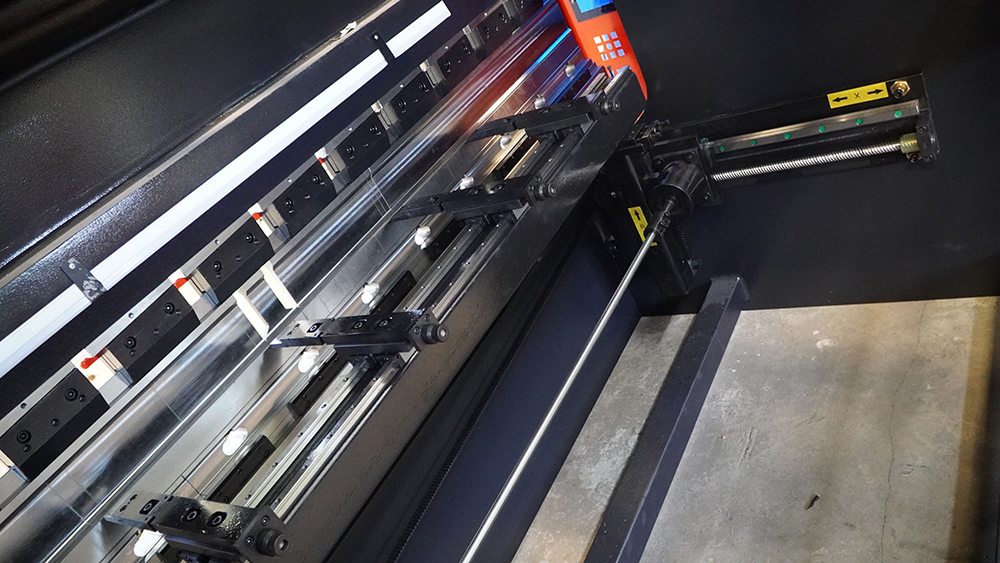

• BGA-2 BackGauge

  Taiwan ball bearing lead screw and linear guide rail

  Synchronous wheel synchronous belt
•

•

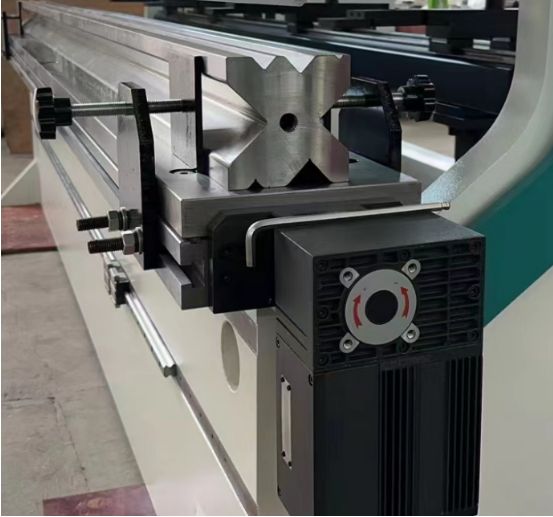

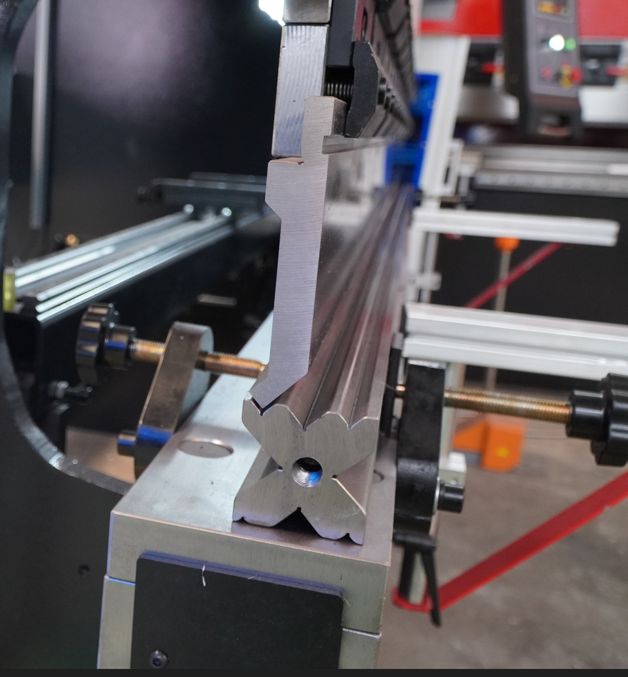

• With 1set standard up punch and die

  The standard top punch and multi-v bottom die

   are specially designed for bending sheet metals.

  More press brake tooling can be selected as per your practical use.

• With fast clamp

  Fast vertical tool change for all Europe type punches

  Safe and fast tool change

  Substantial improvement in time consumption and related costs

  Secure against tool falling down

  Available in manual, pneumatic and hydraulic models

  Easy to mount on your press brake
•

•

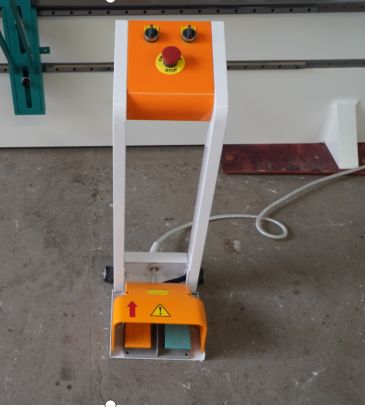

• Foot Switch with Emergency Button

  The foot switch is flexible and durable.

  Emergency button makes operation safe and secure.

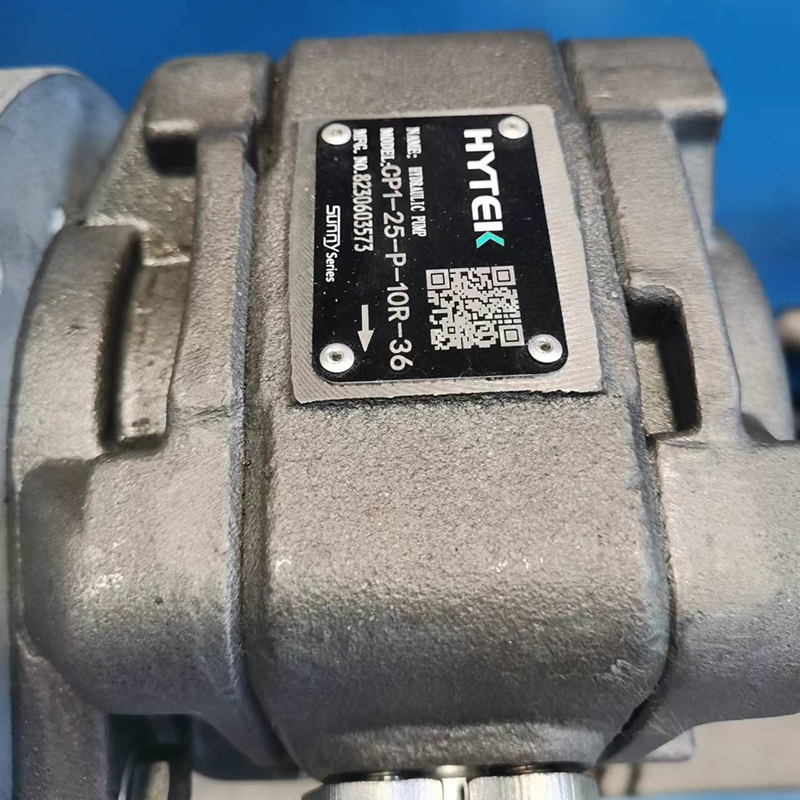

• With USA SUNNY PUMP:

  Improves the lifespan of the machine

  and working in low noise environment
•

•
• Advanced machine configurations

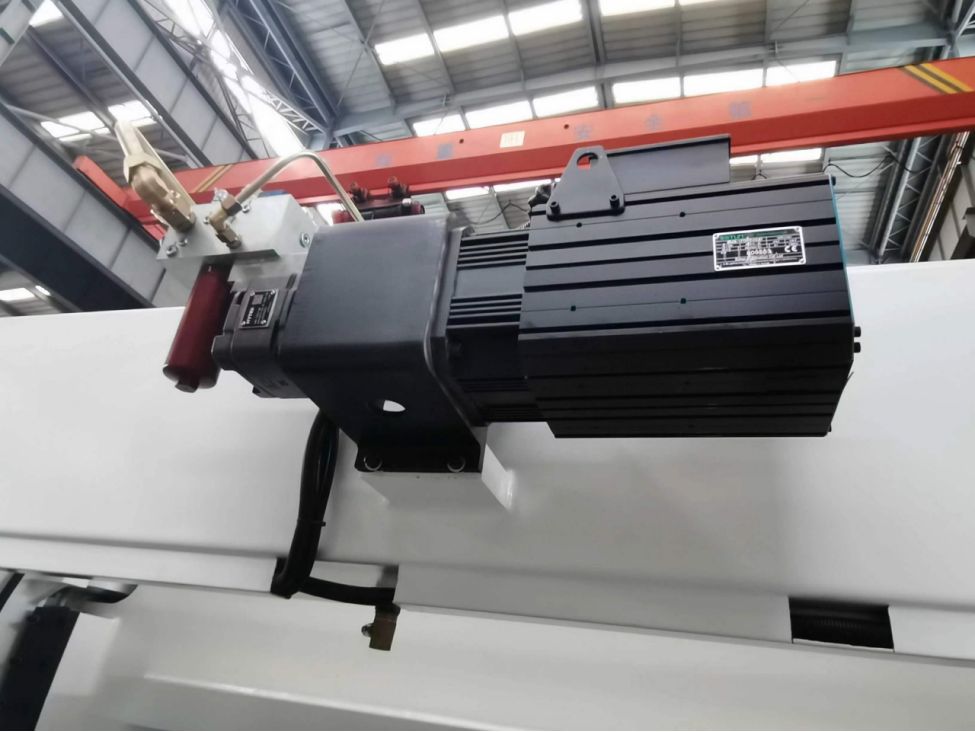

  Siemens industrial motors with outstanding performance

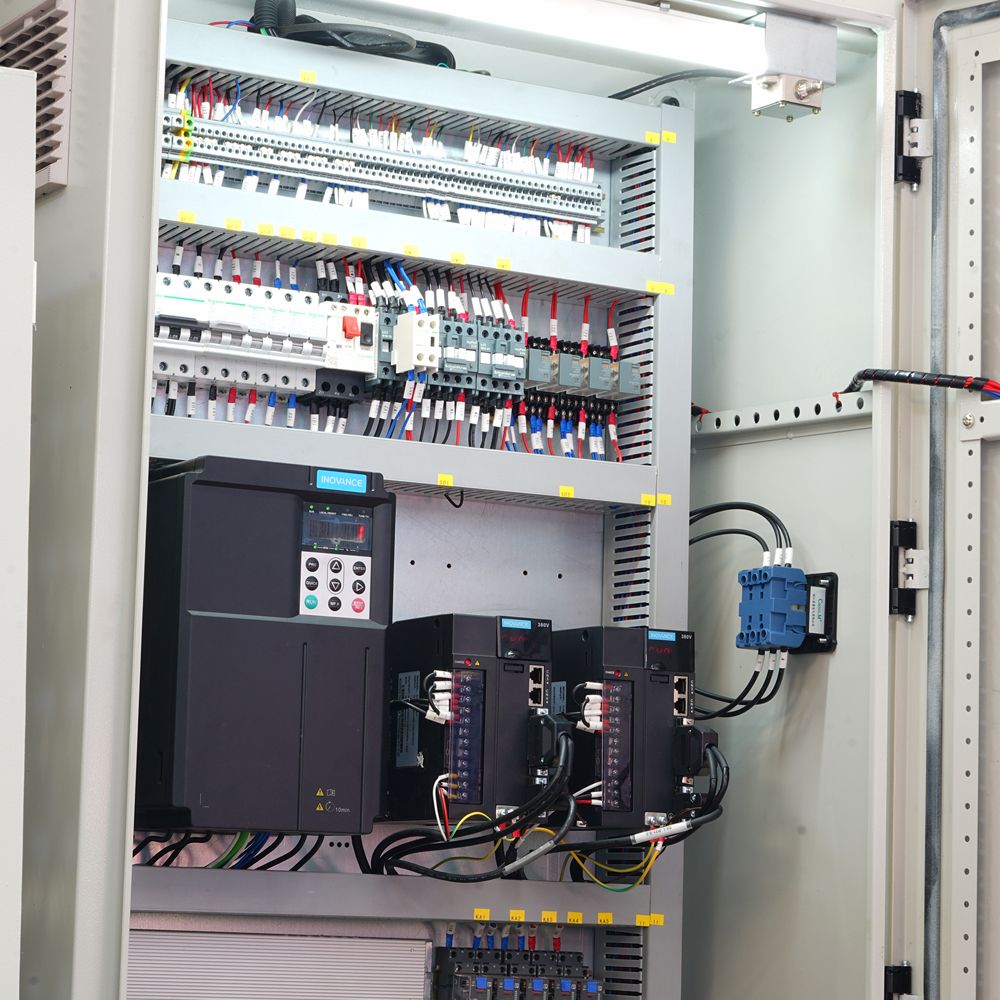

  Schneider Electric Cabinets - High Reliability and Suitability

  Germany EMB oil pipe fitting--High temperature and high pressure resistant

  German BOSCH valve group - fast response, high precision

  USA SUNNY PUMP provide low working noise

• Motorized Crowning(optional)

  Very precise bending angles

  Europe type dies with 60 mm and 90 mm

  Base can be clamped as well as single dies with 13 mm tang

  Motorized crowning with a handle

  Precise positioning and alignment of the crowning table

  Easy and fast usage
•

•
• Machine frame tempering process

  Tempering is the heating treatment of hardened racks to change their organisation.


  By tempering, the hardness of the rack can be decreased but the toughness can be increased.

  Tempering treatment can effectively reduce the internal stress of the rack

  and avoid problems such as cracks or deformation of the rack during use.

• Light curtain  (optional)

  Moves up and down with the slider to provide full protection for the operator in extremely close proximity

  Use laser light source, can detect objects as small as 5mm and allow vibration deviation


  Redundant design with dual outputs for safety and reliability


  Allows quick mould closure for maximum productivity.


  Compact size, with its own scale, for quick and easy adjustments

•

•
• Optical Safety System(optional)

  CLASS 1 Dual Block laser

  Fast response time

  Safety speed automatically monitored
