WE67K-100T 2500MM CybTouch 8PS controller 4+1 AXIS Electro Hydraulic Servo CNC Press Brake Machine

Features

Machine Frame Tempering Process

Poruct Details

•

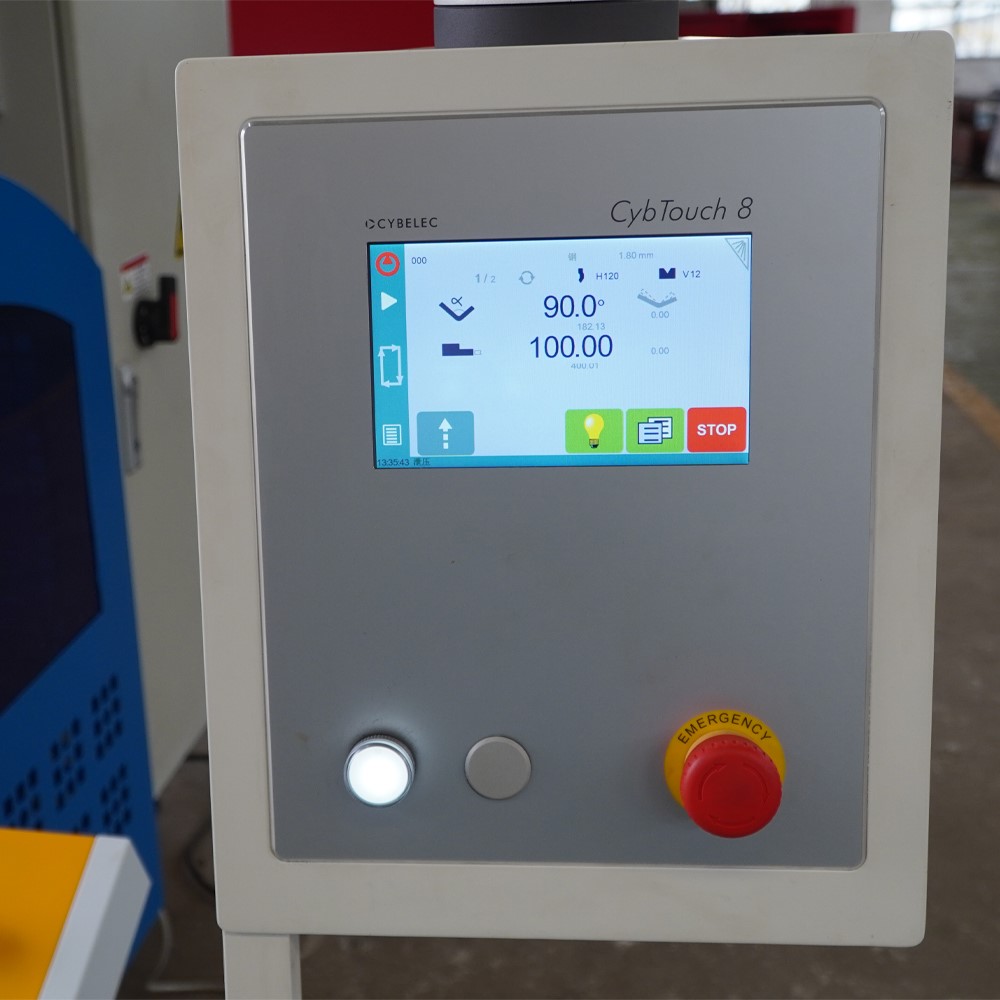

• CNC Control System CT8PS

  • Large touchscreen, with vivid colors and high-contrast.
  • Simple pages, clear display, large keys.
  • Intuitive and user-friendly interface.
  • Complete programming for efficient mass-production with multiple bends.
  • Easy single bends with the Easy Bend page.
  • On-line help and interactive warning pop-ups.
  • Comfortable wireless data backup and software updating using PC or Notebook.
  • USB memory stick port for data transfer/backup.

  • Large variety of languages available
  • Controls 3 axes (with 4th axis as option).
  • 2D graphic profile creation with manual sequencing (option).
  • Bend allowance calculation.
  • Pressure – crowning calculation.
  • Each part or bend can have its specific tools.
  • Angle and back gauge correction.
  • Delivered with PC1200 offline software.

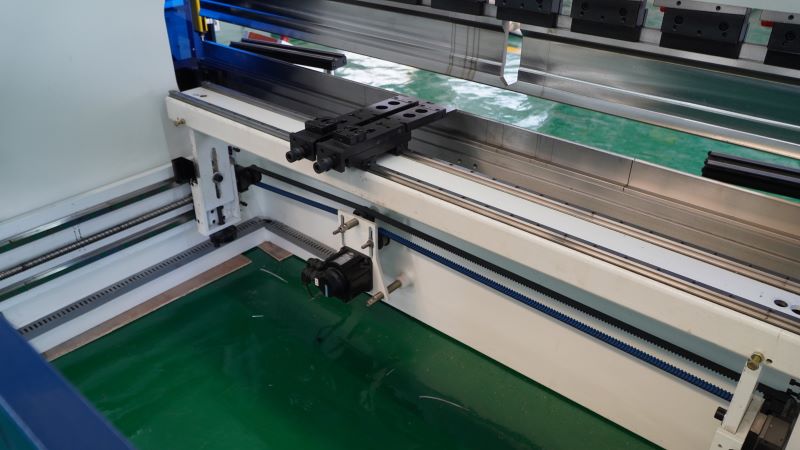

• BGA-2 BackGauge

  Press Brake 4-Axis CNC BackGauge withX,R-Axis

  Ball screws and linear guide on X, R-axis

  Axis X speed 500 mm/s.

  Manual Z1,Z2-axis with HiWIN linear guide

  Mechanical accuracy+0.03 mm.

  Fingers with double stop and micrometric adjustment.

  Footswitch control Z1,Z2 for rear stopper
•

•

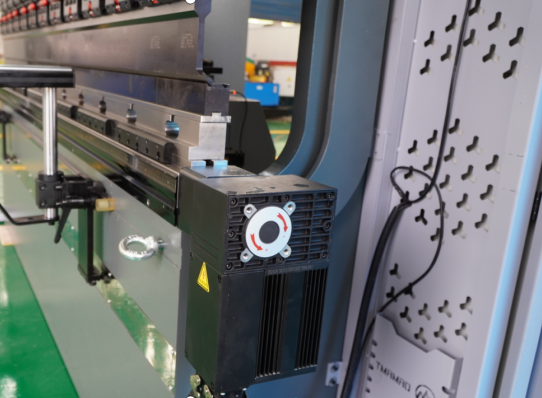

• Motorized Crowning:

  Very precise bending angles

  Europe type dies with 60 mm and 90 mm

  Base can be clamped as well as single dies with 13 mm tang

  Motorized crowning with a handle

  Precise positioning and alignment of the crowning table

  Easy and fast usage

•

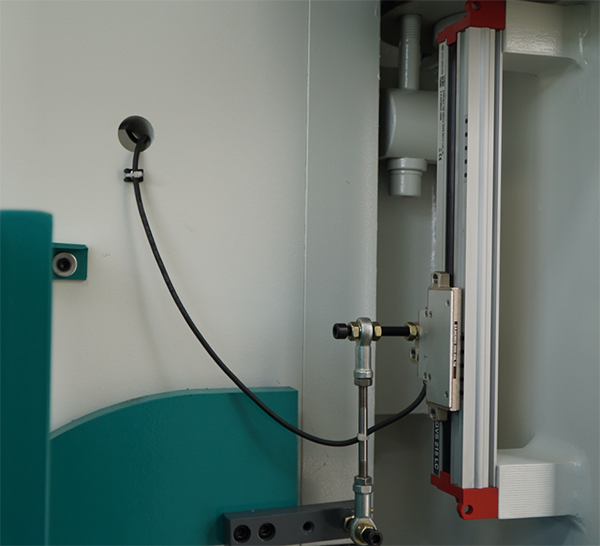

  Grating Ruler

  Grating ruler’s Advantage:

  Different sizes to suit different installation spacesNon-contact linear scales, ABSOLUTES or incremental.

  Digital communication with leading CNCs such as FAGOR, FANUC, Mitsubishi, Siemens, Panasonic, etc.

  Linear scales, high accuracy, high resolution

  Angle encoder with 2 arc second accuracy and 0.01 arc second resolution.

  Signal lines with tape scale readheads can be mounted from both ends.

•

•

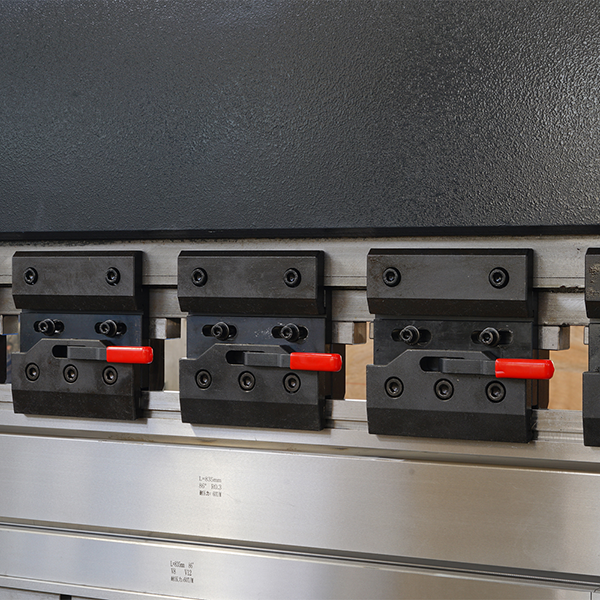

• With Quickly Release Clamp

  Fast vertical tool change for all Europe type punches

  Safe and fast tool change

  Substantial improvement in time consumption and related costs

  Secure against tool falling down

  Available in manual, pneumatic and hydraulic models

  Easy to mount on your press brake

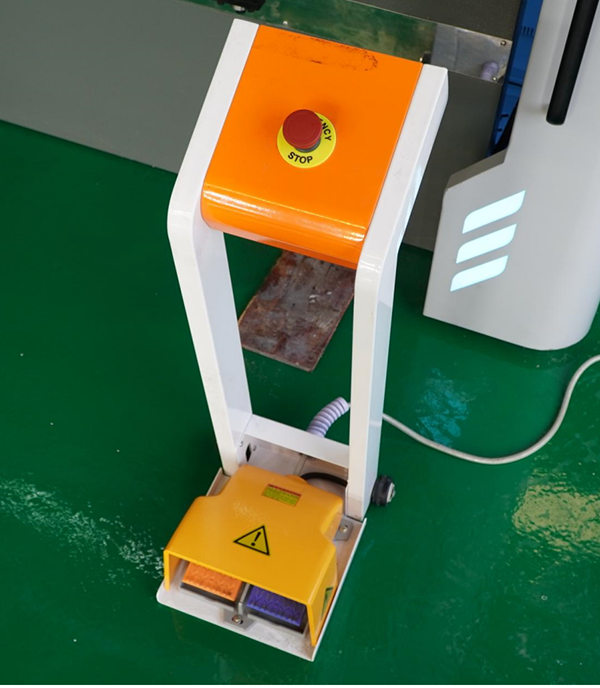

• Foot Switch with Emergency Button

  The foot switch is flexible and durable.

  Emergency button makes operation safe and secure.

•

•

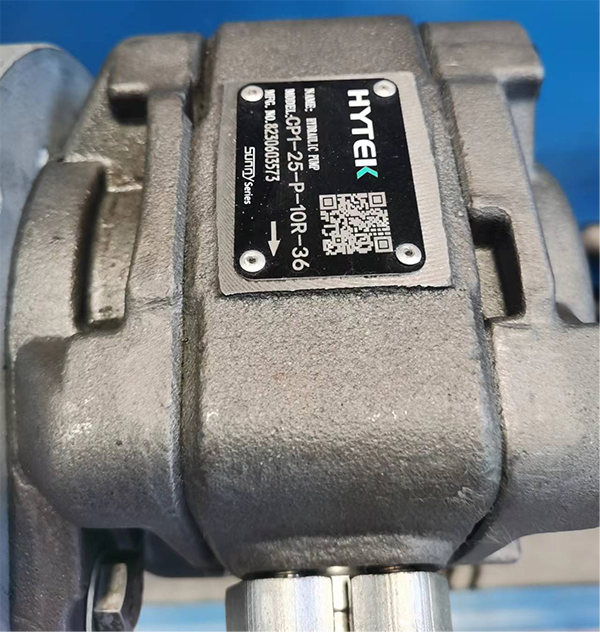

• With USA SUNNY PUMP:

  Improves the lifespan of the machine

  and working in low noise environment

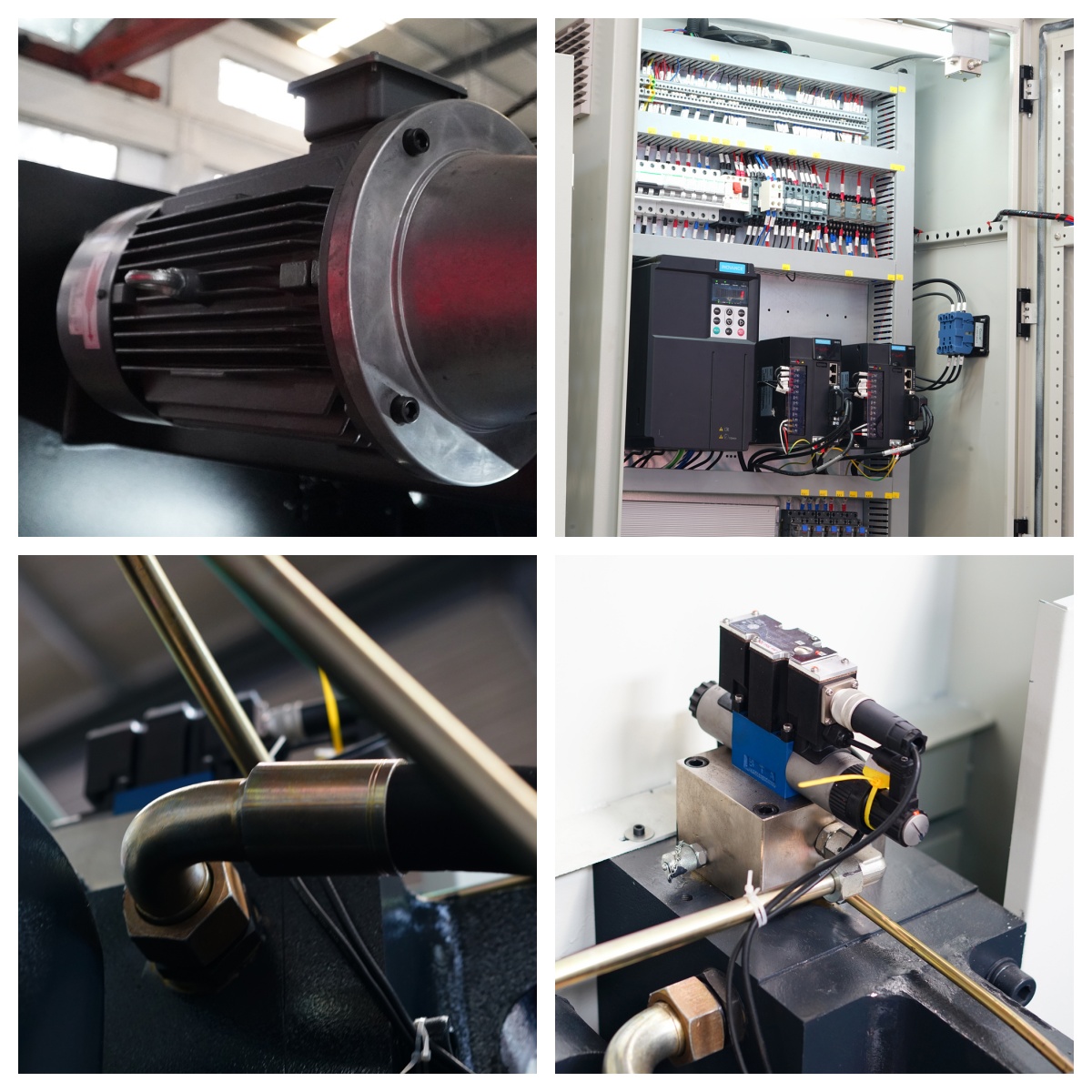

• Advanced machine configurations

  Siemens industrial motors with outstanding performance

  Schneider Electric Cabinets - High Reliability and Suitability

  Germany EMB oil pipe fitting--High temperature and high pressure resistant

  German BOSCH valve group - fast response, high precision

•

•

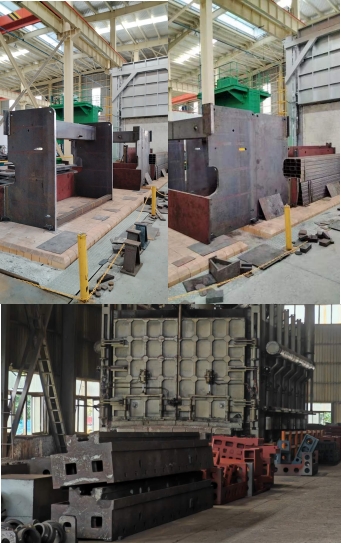

• Machine frame tempering process

  Tempering is the heating treatment of hardened racks to change their organisation.

  By tempering, the hardness of the rack can be decreased but the toughness can be increased.

  Tempering treatment can effectively reduce the internal stress of the rack

  and avoid problems such as cracks or deformation of the rack during use.

• Main servo motor (optional)

  Servo motor’s Advantage:

  High dynamic for a higher productivity of the machine.

  Compliance with EU Directives.

  Lower energy for a green Machine.

  Lowered sound pressure level at 50 dB.

  The seryo-motor with closed loop speed control.

  Energyeffciencyofup to 35 % compared to conventional systems.

  Operating cost is min due to lowenergy consumption.Thus,

  it givesadvantages to the user with high effciency & low operation cost.

•

•

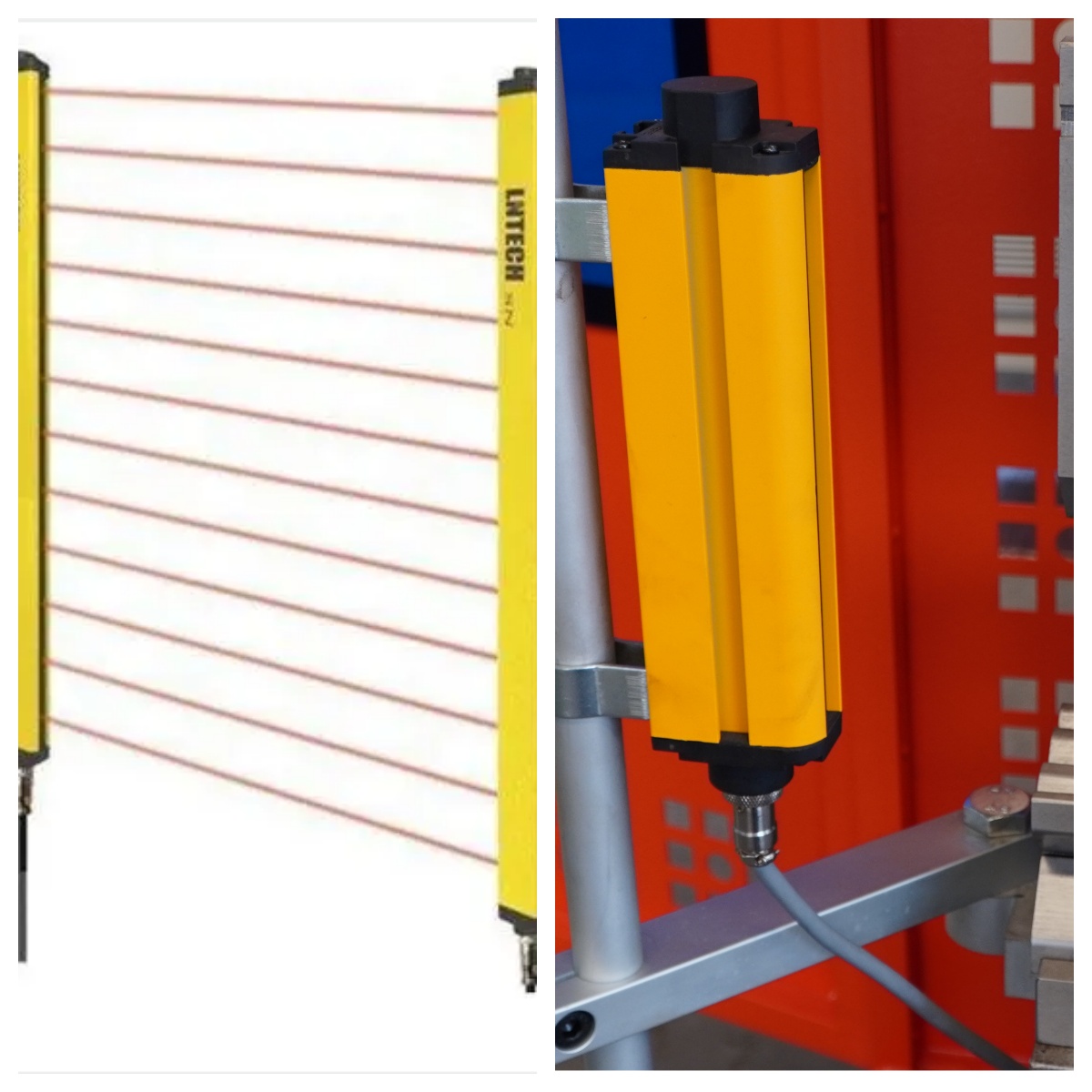

• Light curtain  (optional)

  Moves up and down with the slider to provide full protection for the operator in extremely close proximity

  Use laser light source, can detect objects as small as 5mm and allow vibration deviation

  Redundant design with dual outputs for safety and reliability

  Allows quick mould closure for maximum productivity.

  Compact size, with its own scale, for quick and easy adjustments

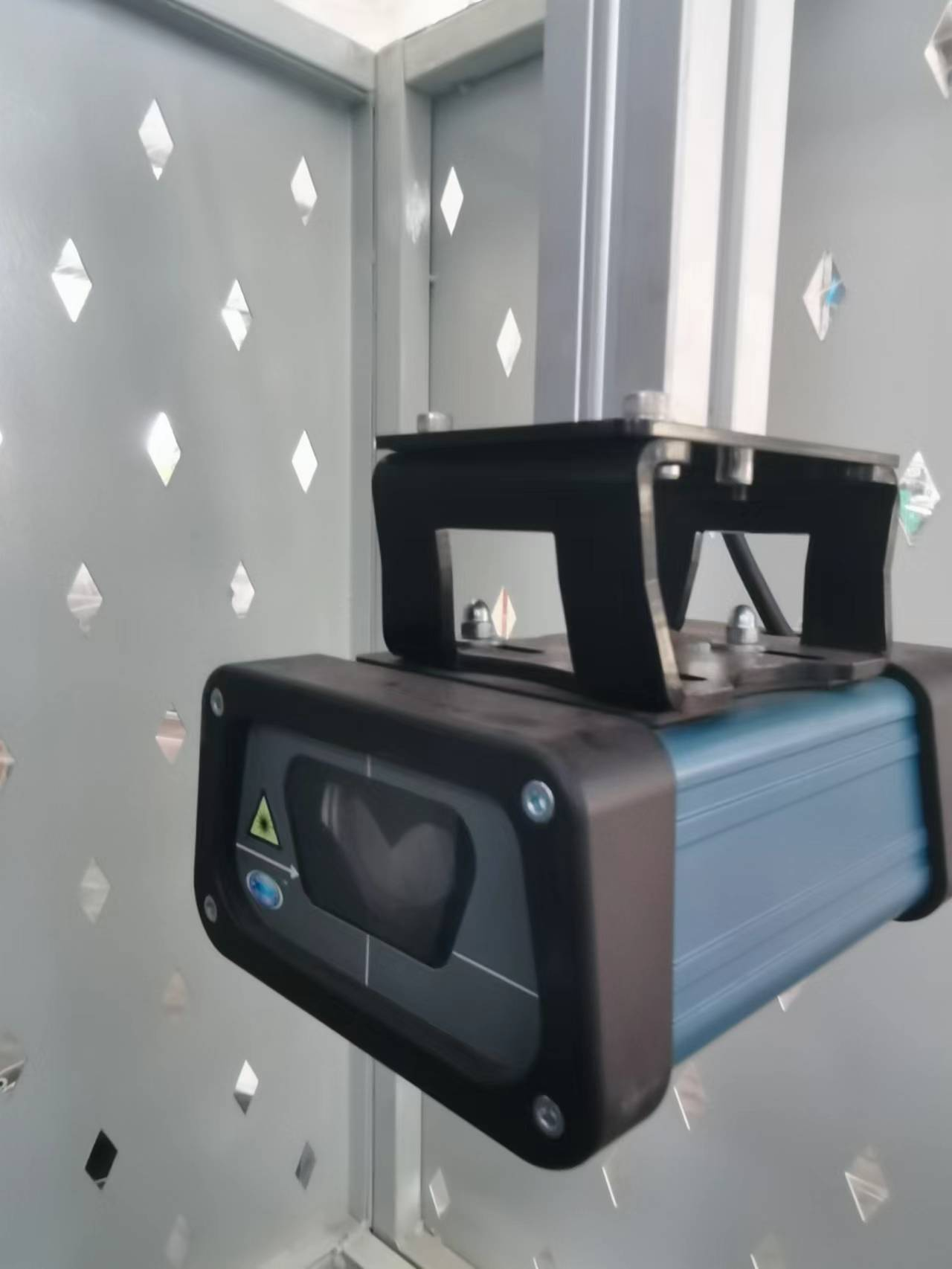

• Optical Safety System(optional)

  CLASS 1 Dual Block laser

  Fast response time

  Safety speed automatically monitored

  Stopping distance automatically monitored

  Status LEDs-Power/Front/middle/rear SensorsPress brake:
•
