WE67K-125T 3200MM CT12 PS Electro Hydraulic Servo CNC Press Brake Machine

product video

Features

product description

Machine Frame Tempering Process

Poruct Details

•

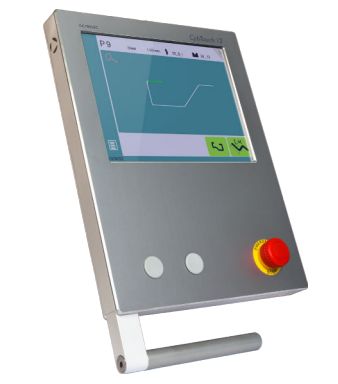

• CYBTOUCH 12 CYBELEC system

  1.Large touch screen ,bright color, high contrast.

  2.Convenient interface, clear display and large icon buttons.

  3.Visual, friendly and easy to operate man-machine interface.

  4.Perfect programming can improve the efficiency of batch multi-step bending.

  5.Online help and pop-up prompts make the software interface very friendly.

  6.Using PCS or laptops, data can be upgraded and transmitted through wireless software.

  7.USB interface transfers/backs up data.

  8. Support multiple languages

• BGA-2 BackGauge

  Press Brake 4-Axis CNC BackGauge withX,R-Axis

  Ball screws and linear guide on X, R-axis

  Axis Xspeed 500 mm/s.

  Manual Z1,Z2-axis with HiWIN linear guide

  Mechanical accuracy+0.03 mm.

  Fingers with double stop and micrometric adjustment.

  Footswitch control Z1,Z2 for rear stopper
•

•

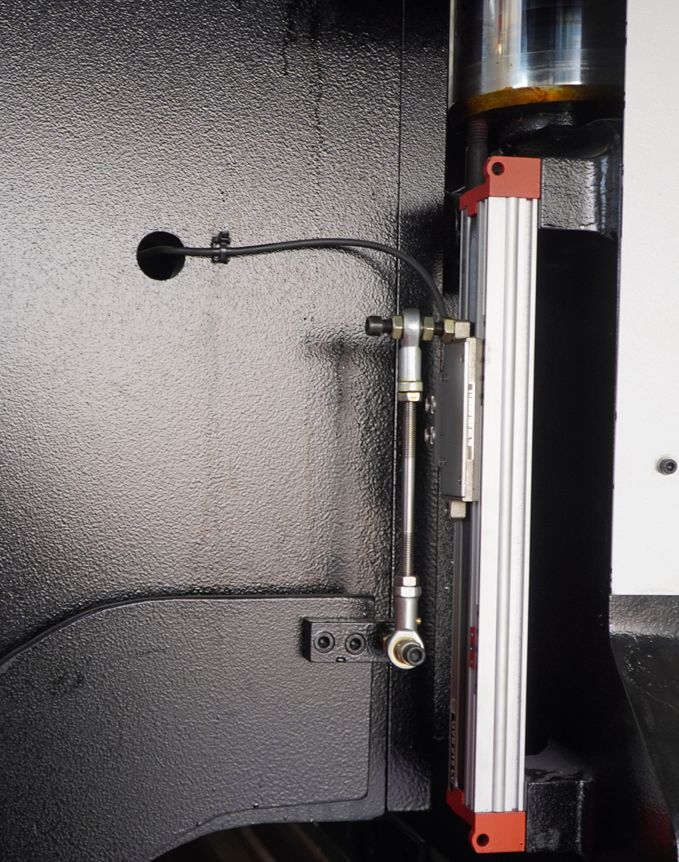

• Grating Ruler

  Grating ruler’s Advantage:


  Different sizes to suit different installation spacesNon-contact linear scales, ABSOLUTES or incremental.

  Digital communication with leading CNCs such as FAGOR, FANUC, Mitsubishi, Siemens, Panasonic, etc.

  Linear scales, high accuracy, high resolution

  Angle encoder with 2 arc second accuracy and 0.01 arc second resolution.

  Signal lines with tape scale readheads can be mounted from both ends.

• With Quickly Release Clamp

  Fast vertical tool change for all Europe type punches

  Safe and fast tool change

  Substantial improvement in time consumption and related costs

  Secure against tool falling down

  Available in manual, pneumatic and hydraulic models

  Easy to mount on your press brake
•

•

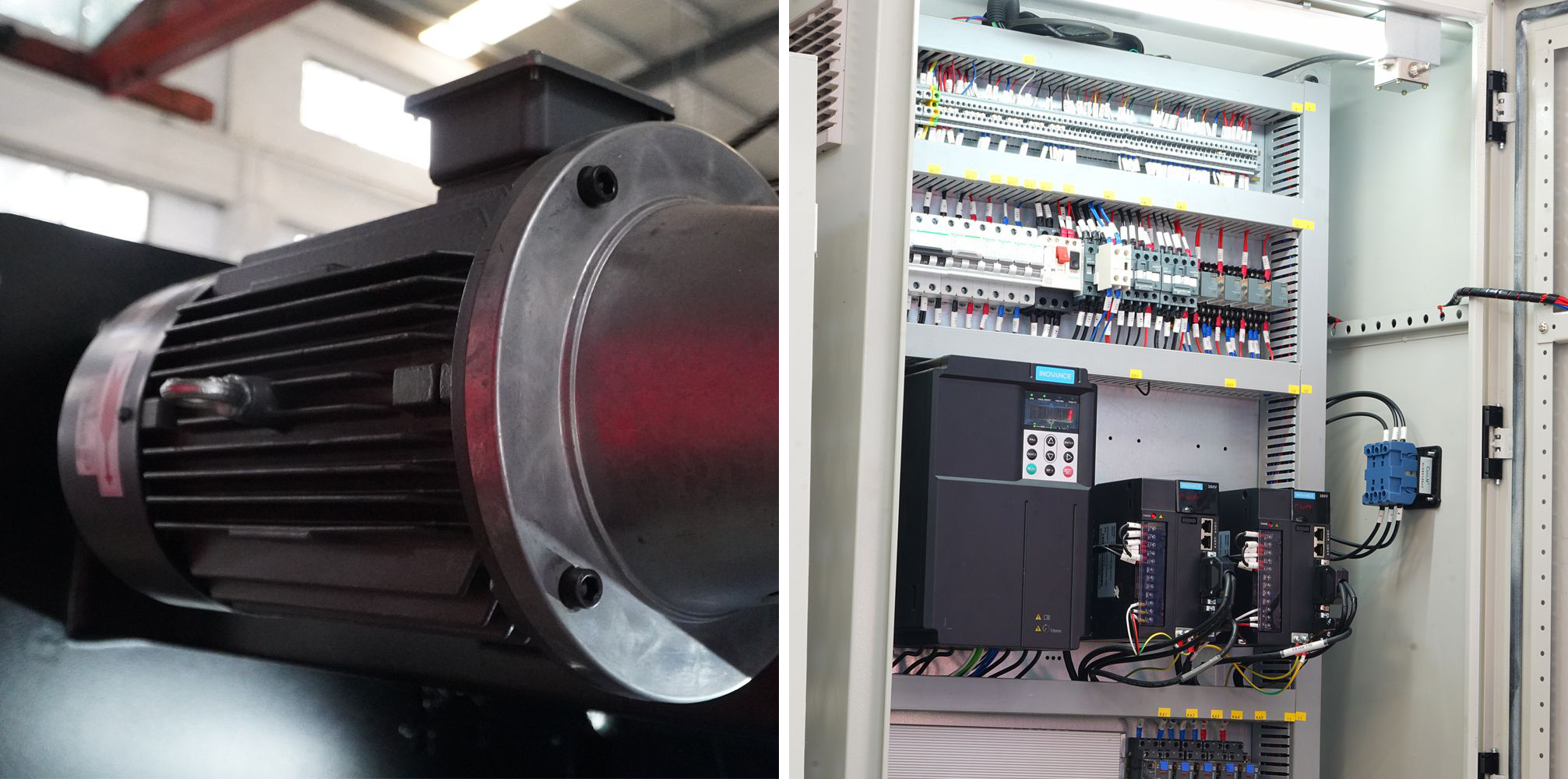

• Advanced machine configurations

  Siemens industrial motors with outstanding performance


  Schneider Electric Cabinets - High Reliability and Suitability

  Germany EMB oil pipe fitting--High temperature and high pressure resistant

  German BOSCH valve group - fast response, high precision

• Motorized Crowning:

  Very precise bending angles

  Europe type dies with 60 mm and 90 mm

  Base can be clamped as well as single dies with 13 mm tang

  Motorized crowning with a handle

  Precise positioning and alignment of the crowning table

  Easy and fast usage
•

•
• Foot Switch with Emergency Button

  The foot switch is flexible and durable.

  Emergency button makes operation safe and secure.

• With USA SUNNY PUMP:

  Improves the lifespan of the machine

  and working in low noise environment
•

•
• Servo motor’s Advantage:

  High dynamic for a higher productivity of the machine.

  Compliance with EU Directives.

  Lower energy for a green Machine.

  Lowered sound pressure level at 50 dB.

  The seryo-motor with closed loop speed control.

  Energyeffciencyofup to 35 % compared to conventional systems.

  Operating cost is min due to lowenergy consumption.Thus,

  it givesadvantages to the user with high effciency & low operation cost.

• Light curtain  (optional)

  Moves up and down with the slider to provide full protection for the operator in extremely close proximity


  Use laser light source, can detect objects as small as 5mm and allow vibration deviation


  Redundant design with dual outputs for safety and reliability


  Allows quick mould closure for maximum productivity.


  Compact size, with its own scale, for quick and easy adjustments

•

•
• Optical Safety System-Advanced

  CLASS 1 Dual Block laser

  Fast response time

  Safety speed automatically monitored

  Stopping distance automatically monitored

  Status LEDs-Power/Front/middle/rear Sensors
