WE67K-125T 3200MM ET100 4+1 AXIS Electro Hydraulic Servo CNC Press Brake Machine
Features
1.The machine frame integrated welding.
2.The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
3.Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment.
4.Shot blast to remove rust and anti-rust treatment.
5.Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
6.Possibility to add options and upgrades on the configuration, at later stage.
7.Low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
8.Energy consumption lower than general machine by 60% by using servo motor.
Machine Frame Tempering Process
Poruct Details

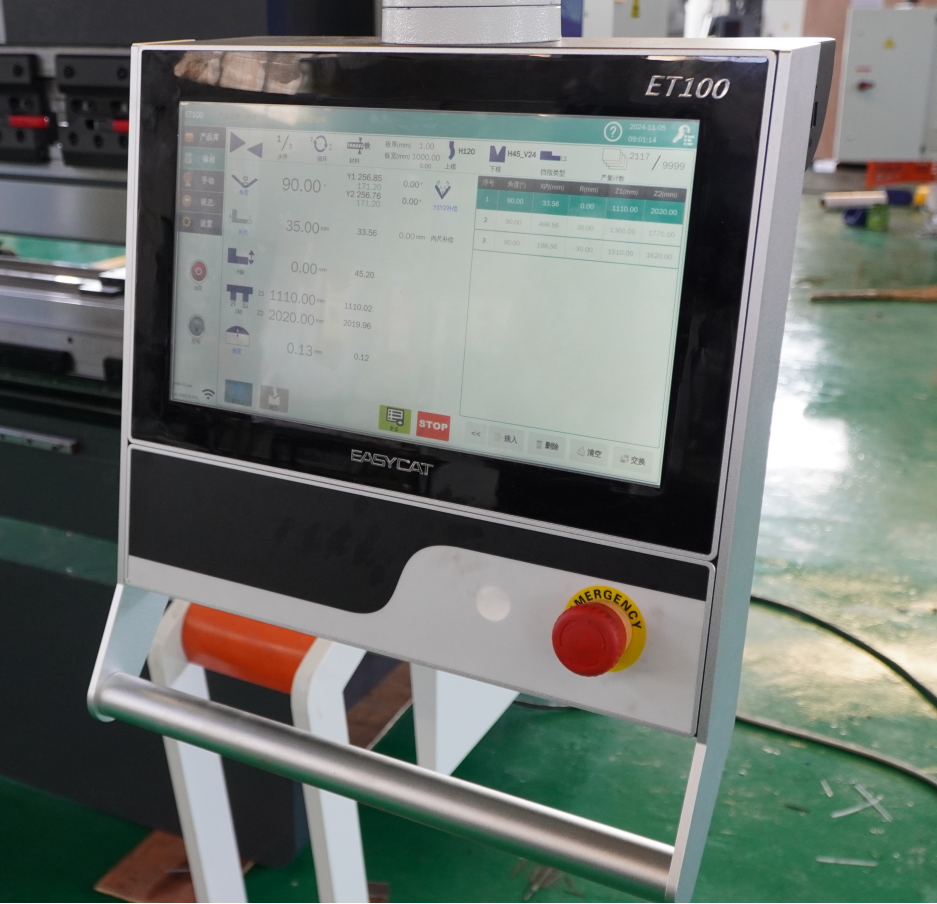

CNC Control System ET100
1.Taiwan 18 inch high resolution color TFT touch screen2.Support CAD import
3.Support scanning code programming, graphic programming, table programming
4.Languages available: Chinese,English,Russian,Portuguese,etc
5.Automatic parameter backup and data import and export are supported
6.The advanced Y-axis control algorithm can control the closed-loop valve, Open ring valves can also be controlled
9.Personalized functions: icon text annotation, bending quick operation, processing step table display
10.Friendly user interface: menu interface, 2D drawing bending simulation, U1 interface multi-style

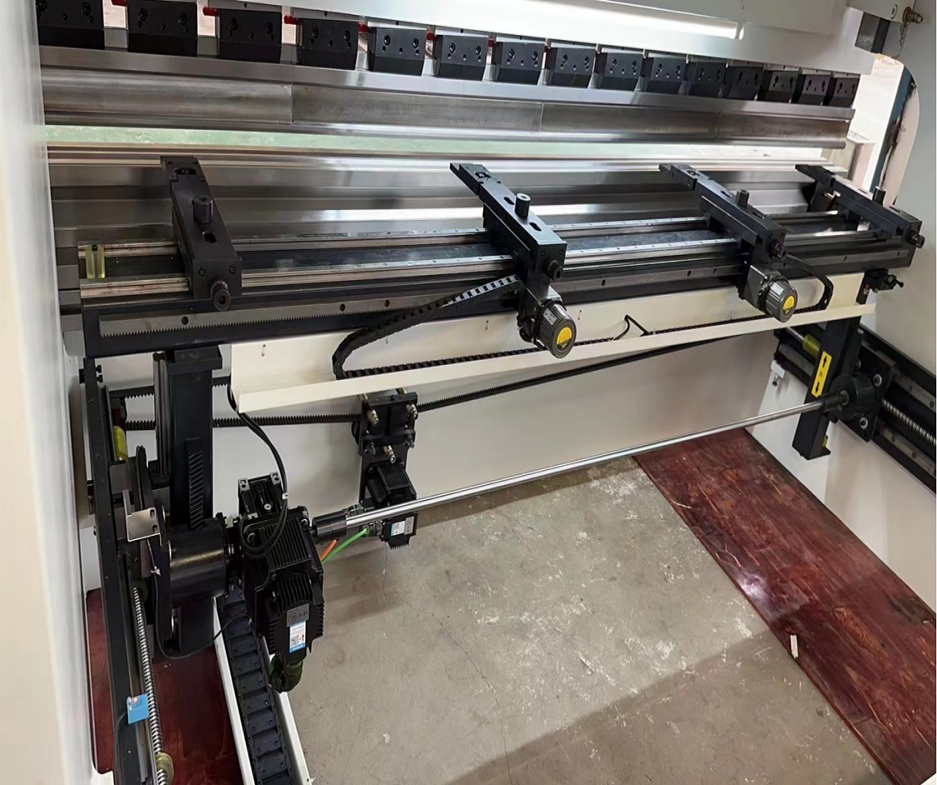

BGA-2 BackGauge
Press Brake 4-Axis CNC BackGauge withX,R-Axis
Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1,Z2-axis with HiWIN linear guide
Mechanical accuracy+0.03 mm.
Fingers with double stop and micrometric adjustment.
Footswitch control Z1,Z2 for rear stopper
Motorized Crowning:
Very precise bending angles
Europe type dies with 60 mm and 90 mm
Base can be clamped as well as single dies with 13 mm tang
Motorized crowning with a handle
Precise positioning and alignment of the crowning table
Easy and fast usage
Grating RulerGrating ruler’s Advantage:
Different sizes to suit different installation spacesNon-contact linear scales, ABSOLUTES or incremental.
Digital communication with leading CNCs such as FAGOR, FANUC, Mitsubishi, Siemens, Panasonic, etc.
Linear scales, high accuracy, high resolution
Angle encoder with 2 arc second accuracy and 0.01 arc second resolution.
Signal lines with tape scale readheads can be mounted from both ends.
With Quickly Release Clamp
Fast vertical tool change for all Europe type punches
Safe and fast tool change
Substantial improvement in time consumption and related costs
Secure against tool falling down
Available in manual, pneumatic and hydraulic models
Easy to mount on your press brake
Foot Switch with Emergency Button
The foot switch is flexible and durable.
Emergency button makes operation safe and secure.
With USA SUNNY PUMP:
Improves the lifespan of the machine
and working in low noise environment
Advanced machine configurations
Siemens industrial motors with outstanding performance
Schneider Electric Cabinets - High Reliability and Suitability
Germany EMB oil pipe fitting--High temperature and high pressure resistant
German BOSCH valve group - fast response, high precision
Machine frame tempering process
Tempering is the heating treatment of hardened racks to change their organisation.
By tempering, the hardness of the rack can be decreased but the toughness can be increased.
Tempering treatment can effectively reduce the internal stress of the rack
and avoid problems such as cracks or deformation of the rack during use.
Main servo motor (optional)
Servo motor’s Advantage:
High dynamic for a higher productivity of the machine.
Compliance with EU Directives.
Lower energy for a green Machine.
Lowered sound pressure level at 50 dB.
The seryo-motor with closed loop speed control.
Energyeffciencyofup to 35 % compared to conventional systems.
Operating cost is min due to lowenergy consumption.Thus,
it givesadvantages to the user with high effciency & low operation cost.
Light curtain (optional)
Moves up and down with the slider to provide full protection for the operator in extremely close proximity
Use laser light source, can detect objects as small as 5mm and allow vibration deviation
Redundant design with dual outputs for safety and reliability
Allows quick mould closure for maximum productivity.
Compact size, with its own scale, for quick and easy adjustments
- Optical Safety System(optional)CLASS 1 Dual Block laserFast response timeSafety speed automatically monitoredStopping distance automatically monitoredStatus LEDs-Power/Front/middle/rear SensorsPress brake:
Press brake
- 1.CNC press brake 3-4 aixs2.CNC press brake 6 aixs3.CNC press brake 6-8 aixs
- 4.NC hydraulic press brake5.Electrical press brake machine
